20ft Pallet Wide

SCF 20ft Pallet Wide Container | Storage

SCF 20ft Pallet Wide Container | End with Storage

20ft Pallet Wide

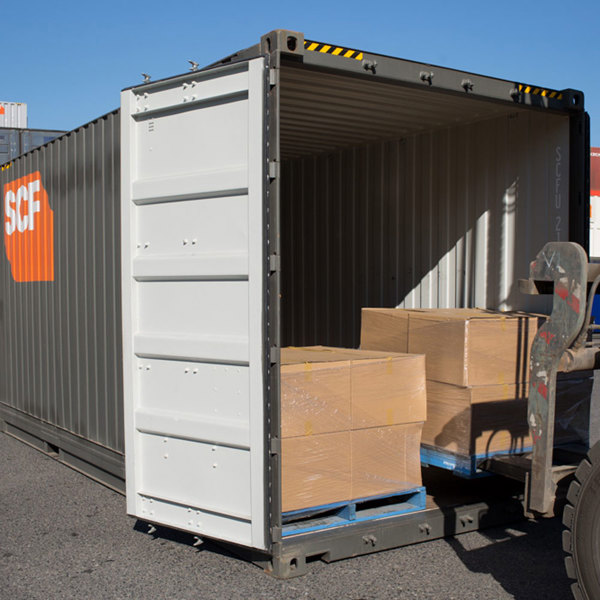

SCF’s 20ft Pallet Wide container is wide enough to fit two chep pallets side by side to maximise equipment utilisation. Easily fit up to 10 pallets for safe and secure transport. Or 20 pallets by adding our vertical load bars.

Key Features

Lashing rings and tie rails to secure cargo
SCF custom base arrangement with reinforced floors
20’ handling points

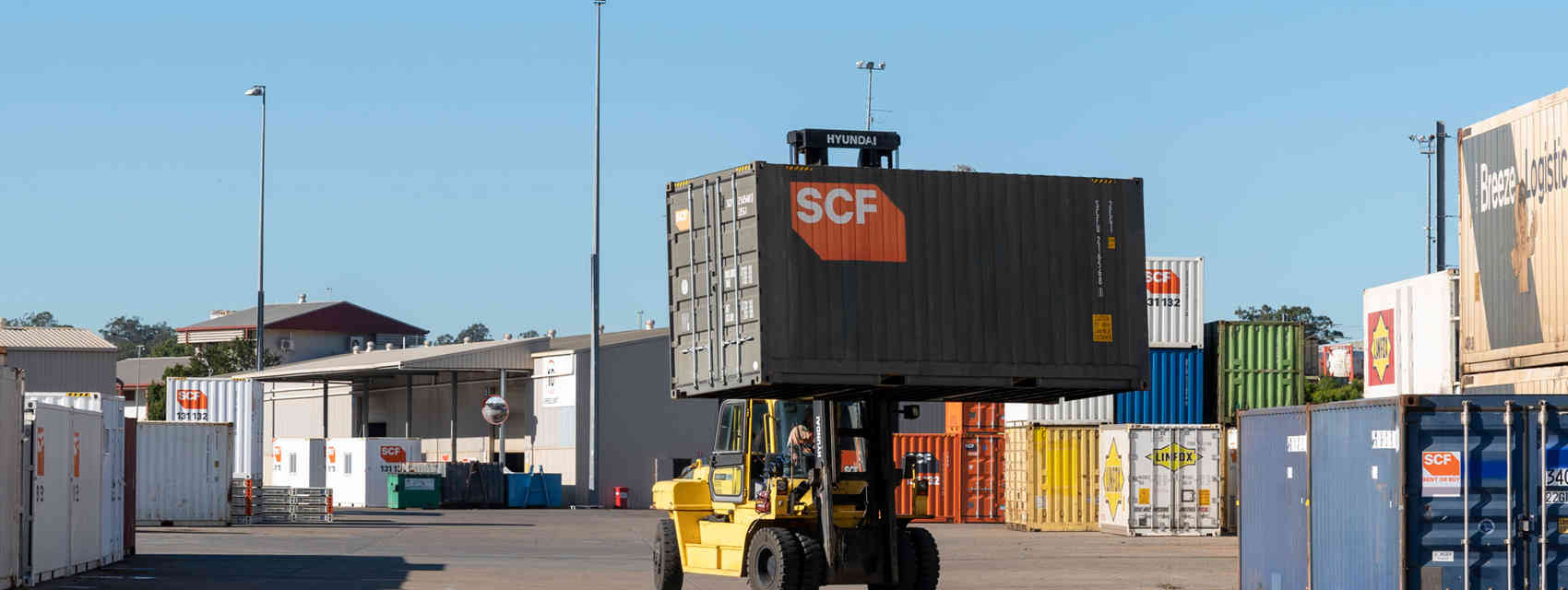

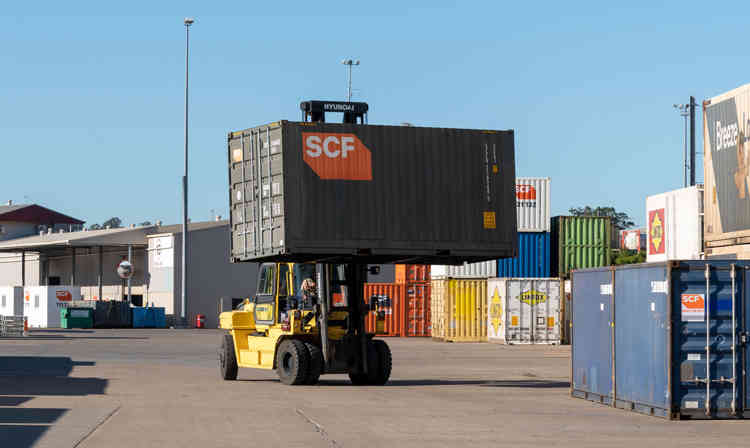

Fork pockets
Reinforced handling points to reduce damage
Secure and lockable

Download brochure Get a Quote

Product Details

Built with high-quality materials, SCF’s 20ft pallet wide container is one of the best performing for intermodal operators to transport goods on road and rail.

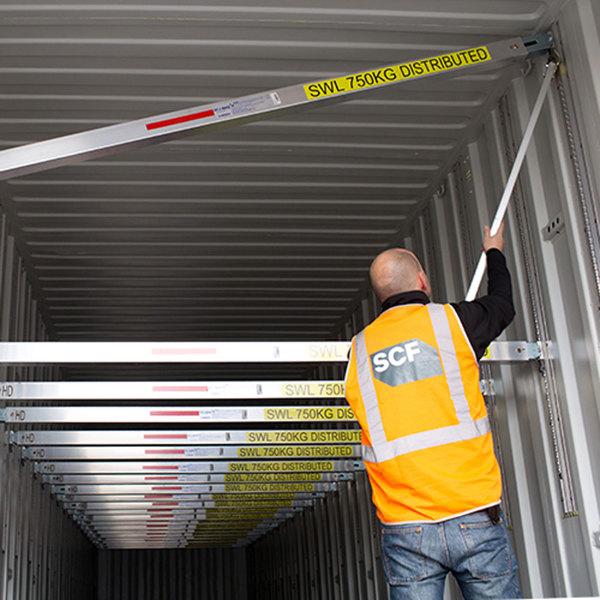

10 pallets not enough? Double the internal capacity by including our vertical load bars for up to 20 pallets.

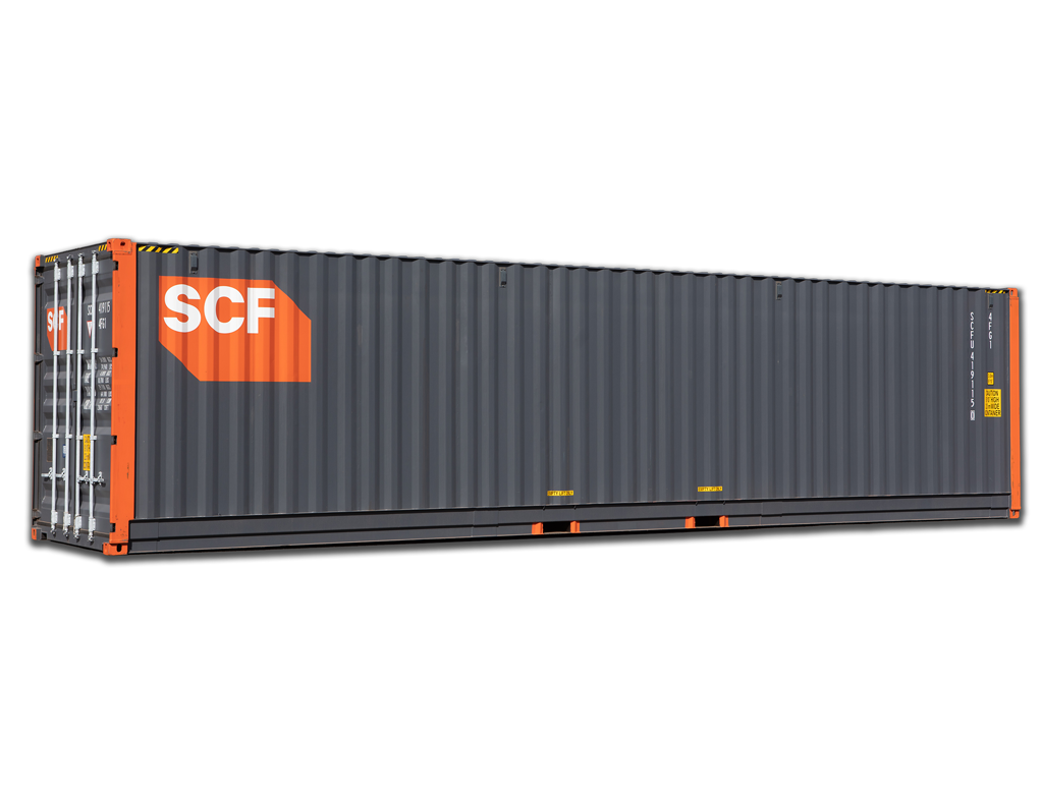

SCF also produces a range of other sizes and variants to provide alternative capacity options to suit your requirements. Consider a larger 40ft variant (20 pallets, or 40 with vertical load bar option) or 48ft variant (24 pallets or 48 with vertical load bar option).

These containers are proven to protect goods in transit, whilst minimising damage through SCFs custom design and quality construction.

Options

Vertical Load Bars
Lightweight Model
Branding

20ft Pallet Wide Dimensions and Weight

Specifications may vary

The cubic capacity of a 20ft pallet wide container is 38m³.

Internal

Length (mm) 5,899

Width (mm) 2,422

Height (mm) 2,694

External

Length (mm) 6,058

Width (mm) 2,462

Height (mm) 2,896

Weight

Tare (kg) 2,882

Payload (kg) 27,598

MGW (kg) 30,480

How is this container delivered?

Tilt Tray

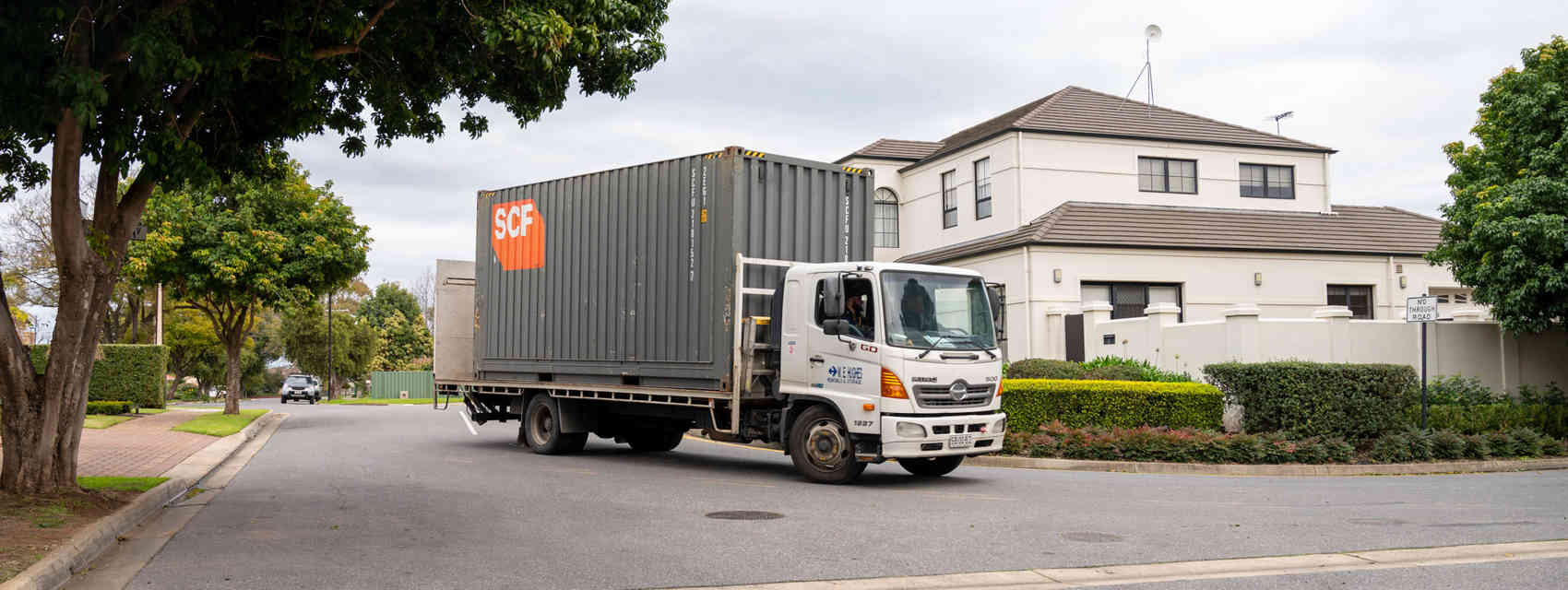

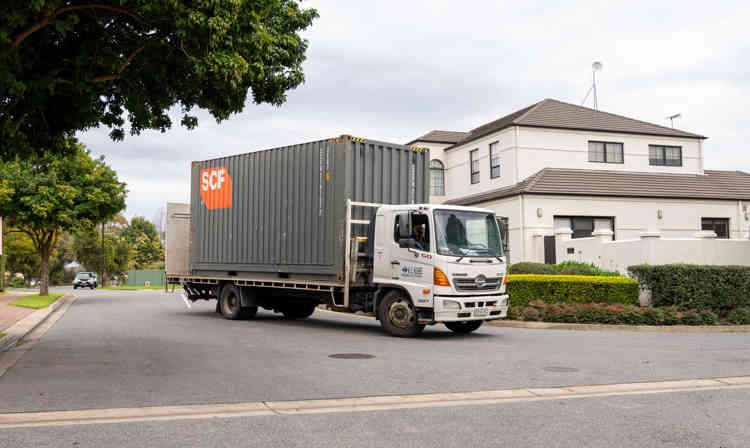

Tilt tray delivers a container off the back of the truck. Similar to a tow truck, the tray is mechanically lowered at an angle, and the container is slid off, with the truck moving forward at slow speed. This is the most common delivery method used for containers. Tilt trays are not suitable for sites with overhead power lines as the container height increases significantly when tilted.

Side Loader

Side loaders are used to transport our 20 foot and 40 foot shipping containers. This is the best delivery method for containers at sites that have limited space either in front or behind the area where the container is to be positioned. The container is unloaded between the two outrigger feet of the side loader, approximately half a metre from the side of the truck.

Hiab Crane

Hiab cranes lift containers from a mechanism located behind the truck's cabin. This is used when there is limited space for a side loader or tilt tray. Using a crane means the container is easily positioned at an angle or up on a raised area. It can also be used to place containers over a fence or other obstacles.
