48ft Pallet Wide

Dimensions Approx
Length 14.6m
Width 2.5m
Height 3m
Pallet Wide x2
Pallet Spaces x48

SCF’s 48ft Pallet Wide Container provides one of the largest cubic capacities in the market, whilst maintaining a low tare weight and feature-rich product. Store two chep pallets side by side creating space for 24 pallets or 48 pallets by adding our optional Vertical Load Bars.

Product Banner Image - 48ft Pallet Wide

48ft Pallet Wide

SCF’s 48ft Pallet Wide Container provides one of the largest cubic capacities in the market, whilst maintaining a low tare weight and feature-rich product. Store two chep pallets side by side creating space for 24 pallets or 48 pallets by adding our optional Vertical Load Bars.

Product Details

Built with high-quality materials, SCF’s 48ft pallet wide container has been designed to meet the performance requirements of intermodal transportation of goods on road and rail.

This unit is one of the largest external footprints available on the market with up to 24 pallet spaces.

24 pallets not enough? Double the internal capacity by including our vertical load bars for up to 48 pallets double stacked.

These containers are built light to maximise payload and revenue earning ability, without compromising on structural integrity or operational features. Our custom design ensures damage is minimised and utilisation is maximised.

The result is a container that is flexible for capacity requirements, yet does not compromise on quality.

  • Lashings rings to secure cargo
  • SCF custom base arrangement with reinforced floors
  • 40’ Handling points
  • Reinforced handling points to reduce damage
  • F-track for freight restraint - optional
  • Transport 24 or 48 pallets

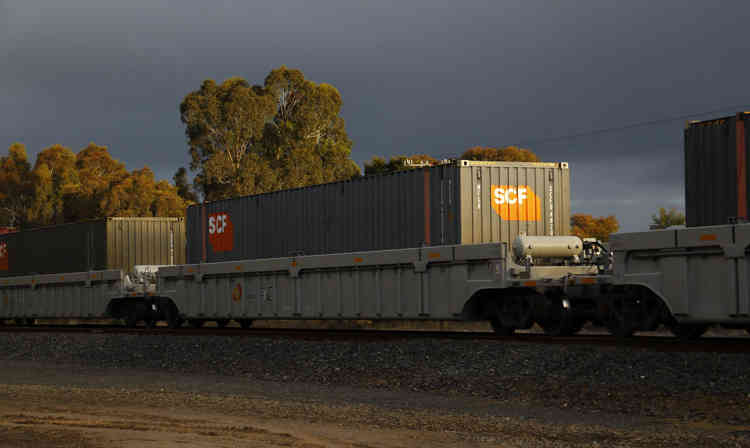

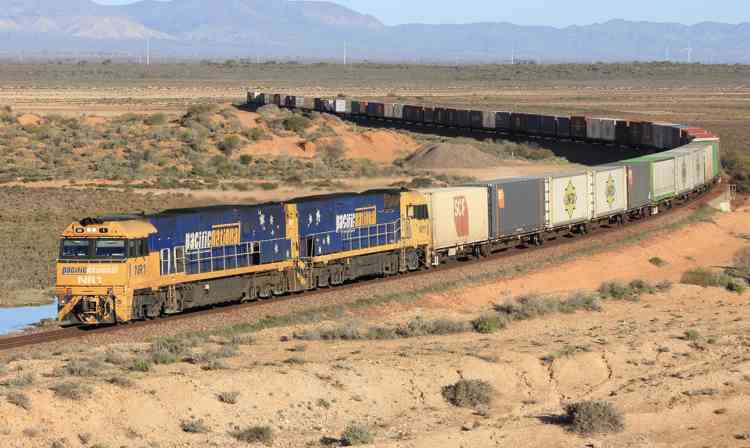

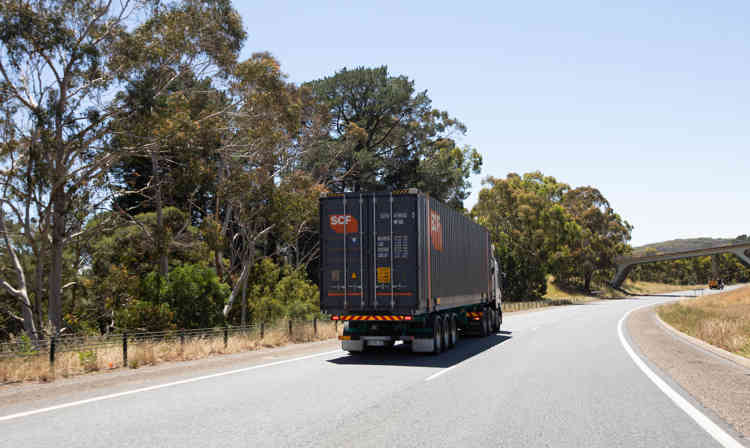

SCF 48Ft Pallet Wide Truck SCF 48Ft Pallet Wide Train Wagon SCF 48Ft Pallet Wide Train

48ft Pallet Wide Dimensions and Weight

Specifications may vary

The cubic capacity of a 48ft pallet wide container is 97.4m3.

Internal (mm)
Length 14,490
Width 2,402
Height 2,781
External (mm)
Length 14,630
Width 2,500
Height 3,000
Weight (kg)
Tare 6,280
Payload 28,720
MGW 35,000

48ft Pallet Wide

48ft Pallet Wide - line drawing - SCF

Key Features

  • Lashings rings to secure cargo
  • SCF custom base arrangement with reinforced floors
  • 40’ Handling points
  • Reinforced handling points to reduce damage
  • F-track for freight restraint - optional
  • Transport 24 or 48 pallets
Get a Quote

FAQ

Without Vertical Load Bars, you can fit 24 pallets. With Vertical Load Bars, that doubles to 48 pallets.

All SCF intermodal containers are designed and built to fit two pallets side by side. This maximises the internal space to support the efficient transport of pallets.

Rather than source standard containers used by shipping lines, SCF designs containers in house specifically for transport customers. This means that all SCF intermodal containers are manufactured with features that are relied upon by logistics, 3PL and transports companies across the country.

Vertical Load Bars (VLB) are installed inside the container, and can be lowered by a single user with the included VLB tool to a desired height. The tool protects the user from injuries (think pinched fingers) and also makes it easy to reach the load bars when they are in the raised 'inactive' position.

When deployed, Vertical Load Bars provide a strong base that pallets can be stacked on, without placing any pressure on pallets underneath. This provides users with two levels to safely place pallets on, effectively doubling the internal pallet capacity of a container.

You might also like

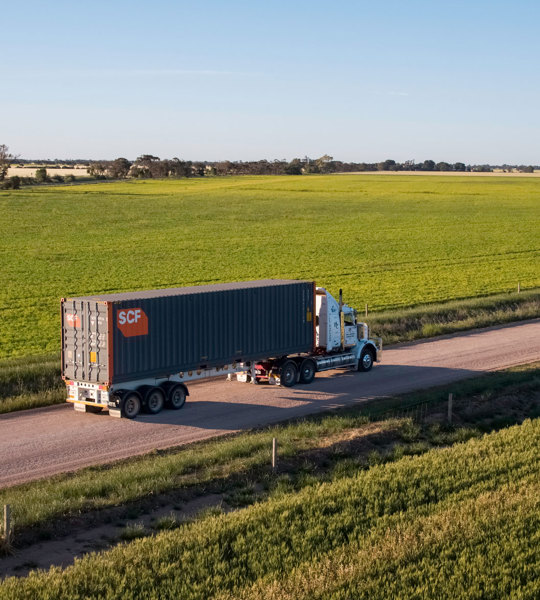

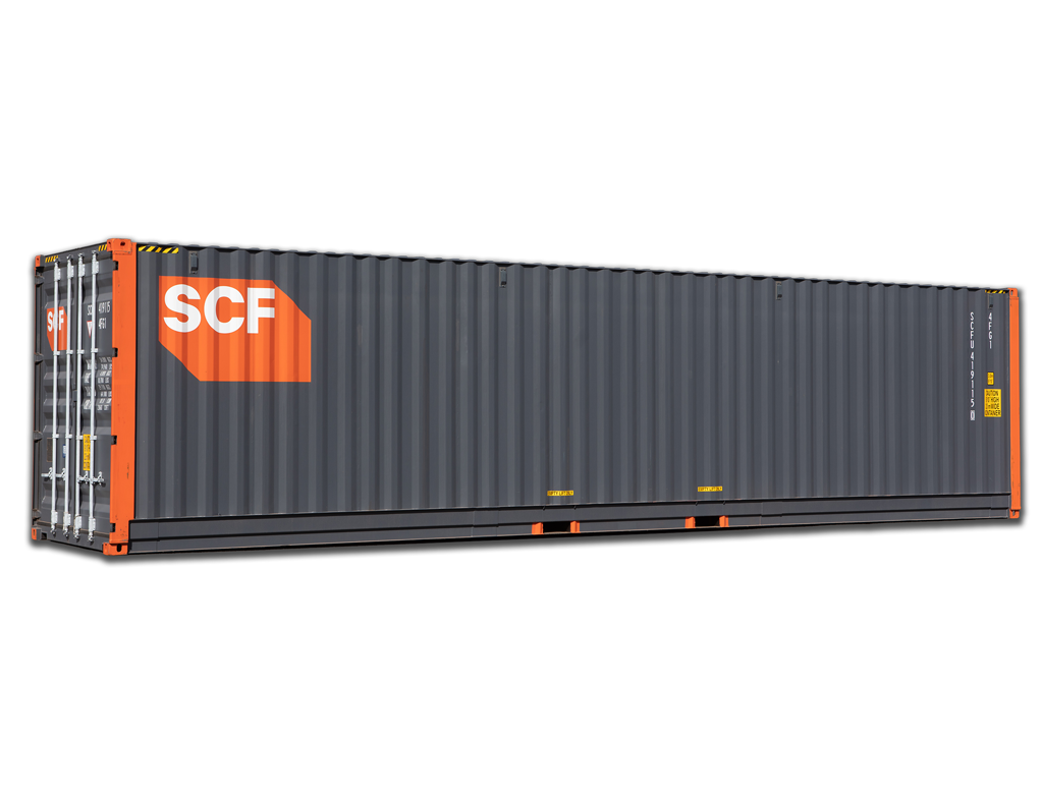

40ft Pallet Wide

40ft Pallet Wide

  • Approx 12.2m L x 2.5m W x 2.9m H

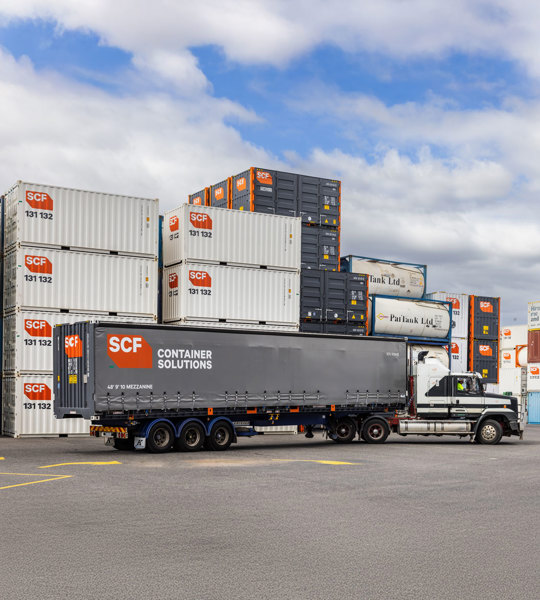

48ft Tautliner

48ft Tautliner Container

  • Approx 14.6m L x 2.5m W x 3m H

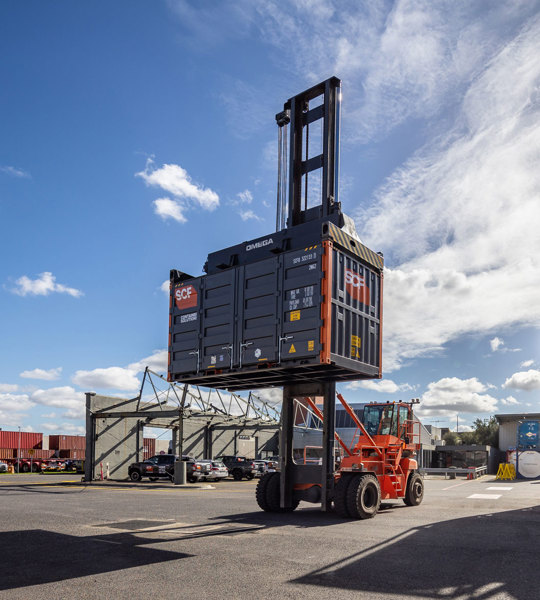

20ft Side Door

20ft Double Side Door

  • Approx 6.1m L x 2.5m W x 2.9m H

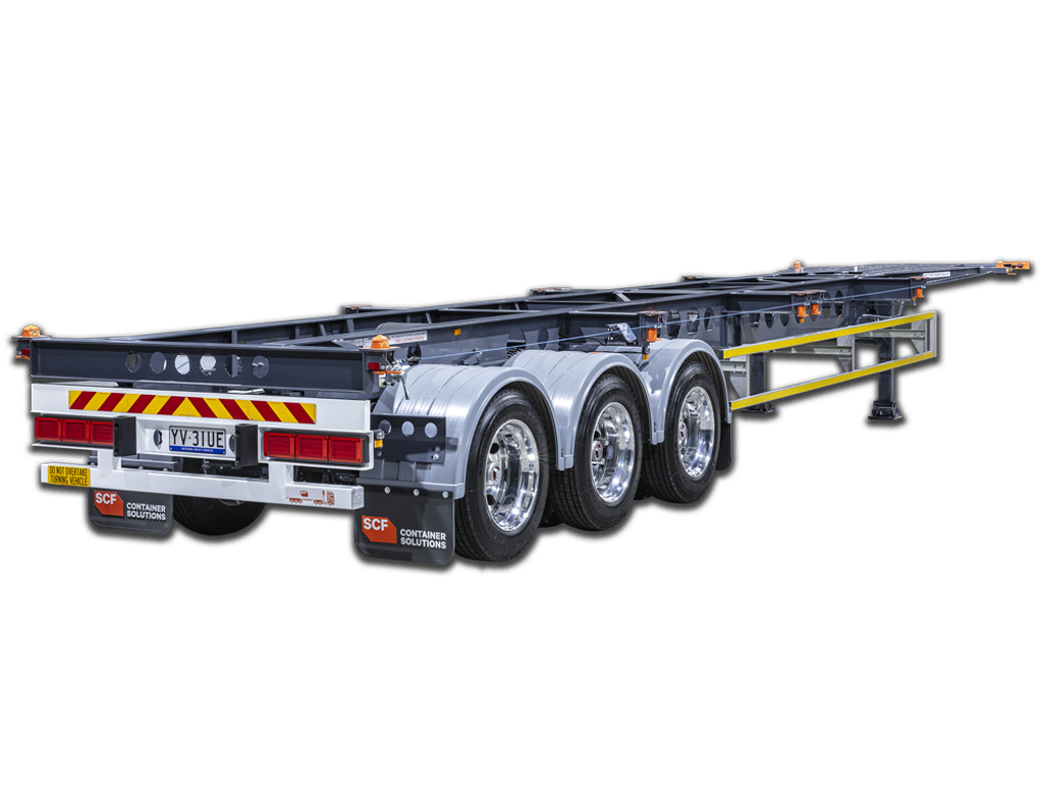

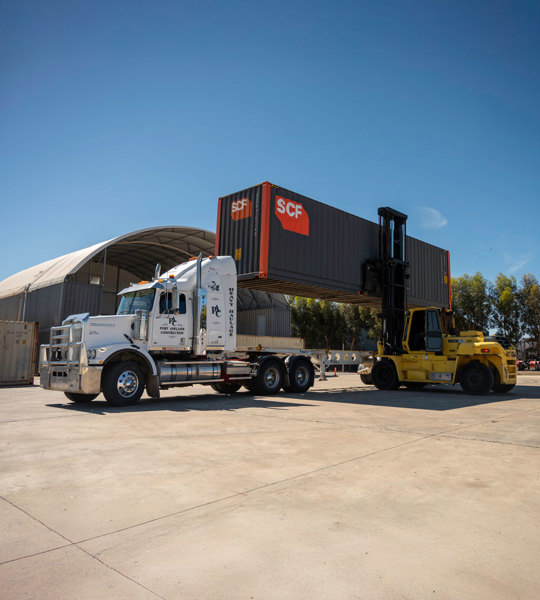

Skel Trailer
