Flat Rack Container

Dimensions Approx
Length 12.2m
Width 2.4m
Height 2.6m

Flat racks are used to transport irregular freight that doesn't fit into a standard container. Cargo such as steel, vehicles, machinery and generators.

Product Banner Image - Flat Rack Container

Flat Rack Container

Flat racks are used to transport irregular freight that doesn't fit into a standard container. Cargo such as steel, vehicles, machinery and generators.

Flat Rack Features

SCF's Flat Rack Container provides a solution to complex cargo requirements that do not fit into a traditional container. Items that do not fit into a traditional container include oversized objects, motor vehicles, machinery, construction materials and equipment. They are also used to transport steel and supplies, some of which are pre- fabricated.

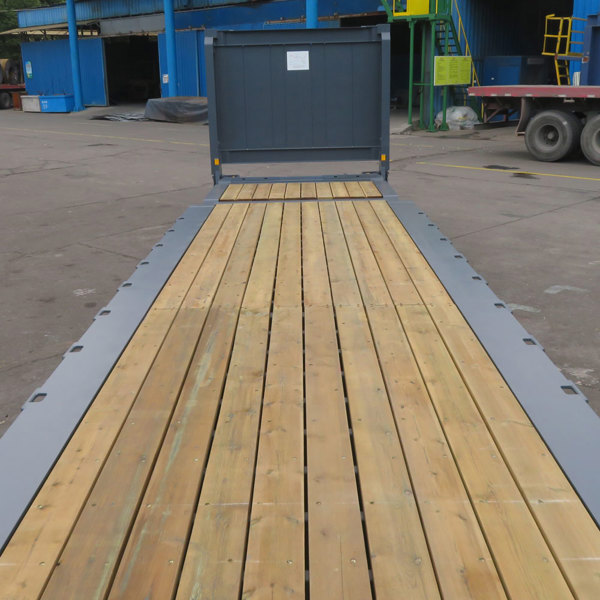

Their open design means they can be quickly and safely loaded by forklifts.

Certain models feature ends are also collapsible, which makes them easy to store when not in use, or transport in multiples between locations.

If you're struggling to transport unusual cargo, consider using a Flat Rack Container.

  • High capacity payloads up to 50,000kg for heavy cargo
  • Can be nested together in batches to stack for transport to reduce empty transit costs
  • Large range of lashing systems available to cater for different freight requirements (lashing bars, tie rails, bollards, headboards etc)

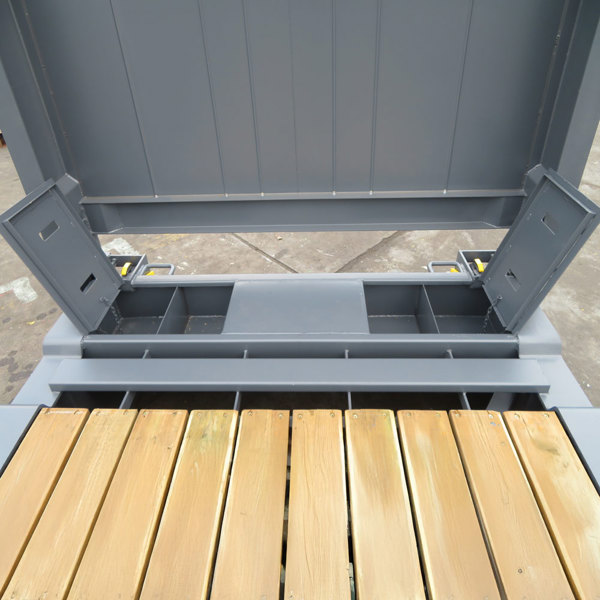

  • Optional toolbox system for added storage of restraints when not in use
  • Optional steel or timber floor
  • CSC plated for road, rail and sea

Flat Rack Container Dimensions and Weight

External dimensions and weight of a Flat Rack container. Specifications may vary.

Internal (mm)
Length NA
Width NA
Height NA
External (mm)
Length 12,192
Width 2,438
Height 2,591
Weight (kg)
Tare 5,040
Payload 47,460
MGW 52,500

Flat Rack Container

Flat Rack External Dimensions

External dimensions of SCF's flat racks.

Flat Rack Container - line drawing - SCF

Key Features

  • High capacity payloads up to 50,000kg for heavy cargo
  • Can be nested together in batches to stack for transport to reduce empty transit costs
  • Large range of lashing systems available to cater for different freight requirements (lashing bars, tie rails, bollards, headboards etc)
  • Optional toolbox system for added storage of restraints when not in use
  • Optional steel or timber floor
  • CSC plated for road, rail and sea
