48ft Tautliner Container

Dimensions Approx
Length 14.6m
Width 2.5m
Height 3m

SCF’s 48ft Tautliner container (also referred to as a Curtain Side container) offers additional cubic capacity for both palletised and irregular freight types. Operator use is made simple with safe access by one person available from both sides.

Product Banner Image - 48ft Tautliner Container

48ft Tautliner Container

SCF’s 48ft Tautliner container (also referred to as a Curtain Side container) offers additional cubic capacity for both palletised and irregular freight types. Operator use is made simple with safe access by one person available from both sides.

48ft Tautliner Details

With one of the largest container capacities in the range, SCF’s 48ft Tautliner container provides extra space for 24 pallets or 48 pallets using the option of the Mezzanine Deck system (optional).

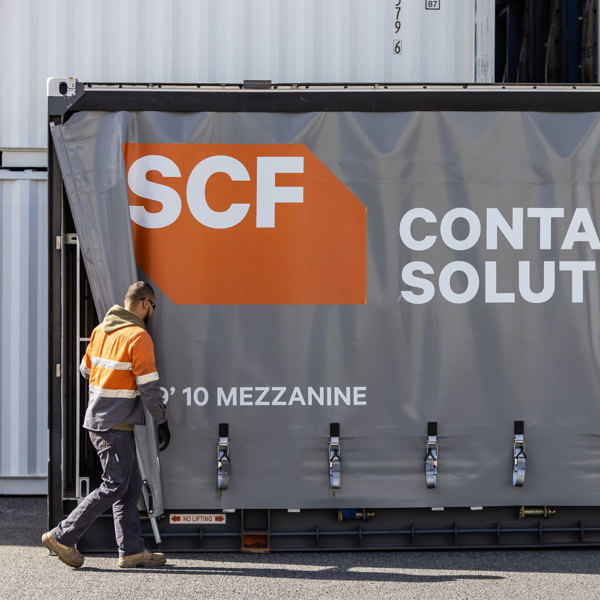

Curtain access from both sides enables easy loading and unloading of freight while hanging gates and posts ensure operators remain safe.

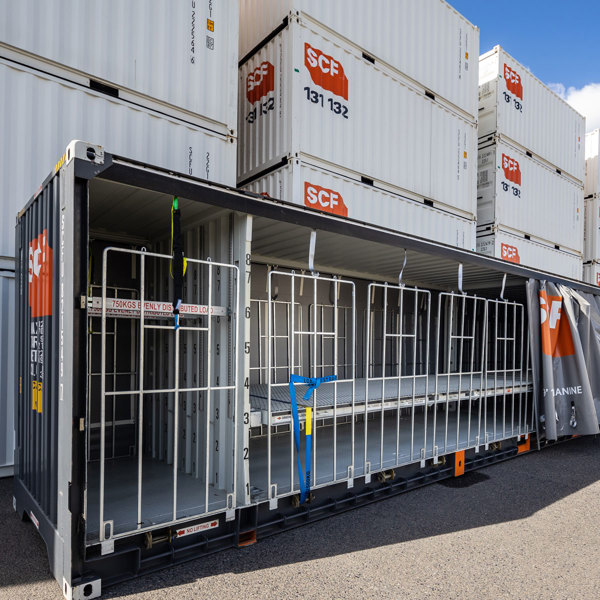

The Mezzanine Deck system is designed to allow double stacking of pallets for quicker loading and cost efficiencies.

Multiple restraint points located in the bottom side rail and recessed into the floor allow for the cartage of both palletised and irregular freight.

SCF also produces a range of other sizes and variants to provide alternative capacity options to suit your requirements.

  • 2 pallet wide
  • Store up to 48 pallets with a Mezz Deck (optional)
  • Hanging posts and gates
  • Full lashing rail for restraint

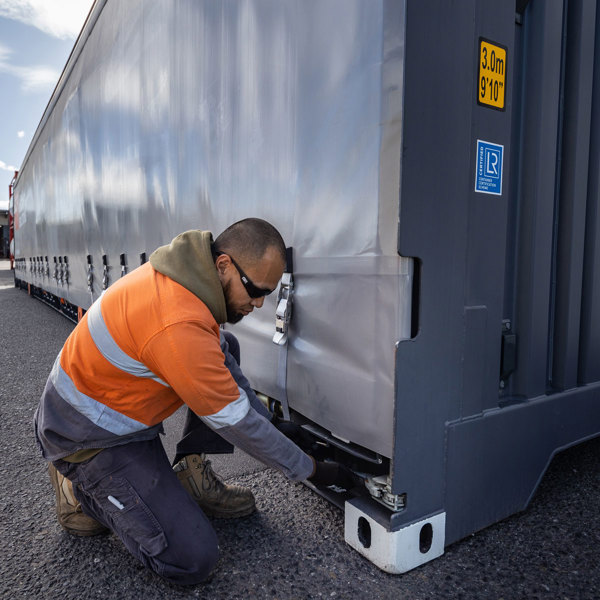

  • Load binder winches

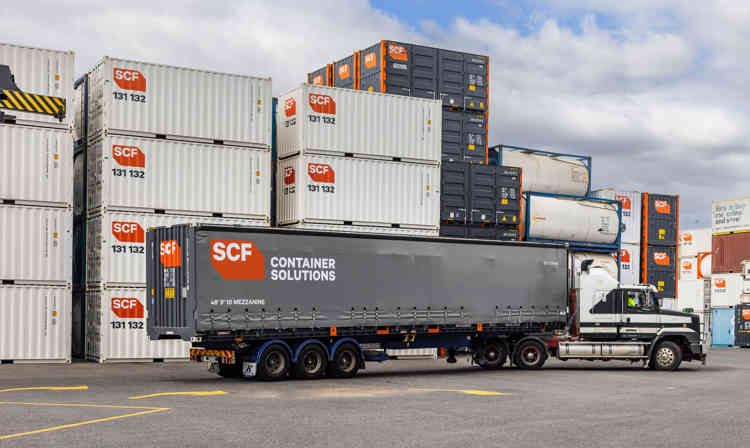

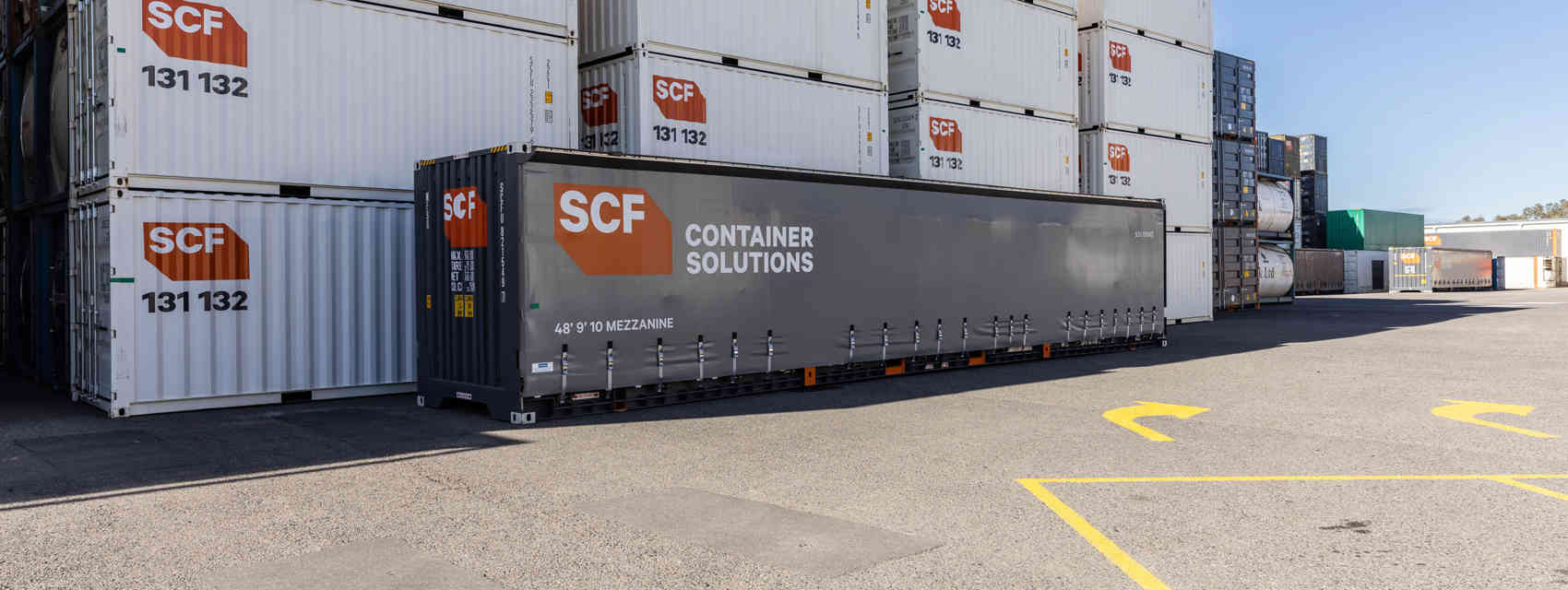

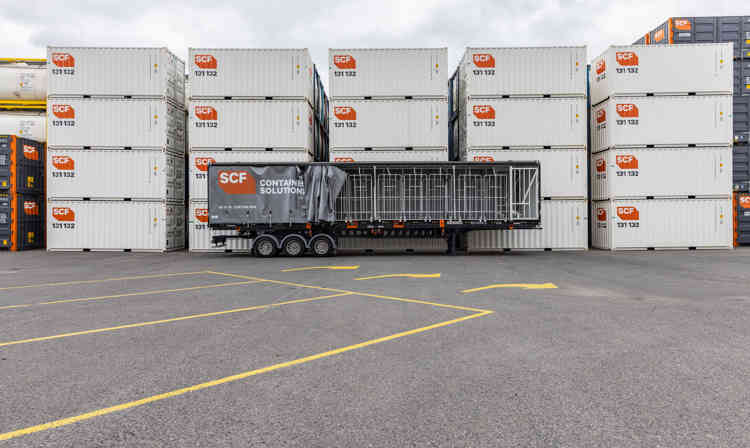

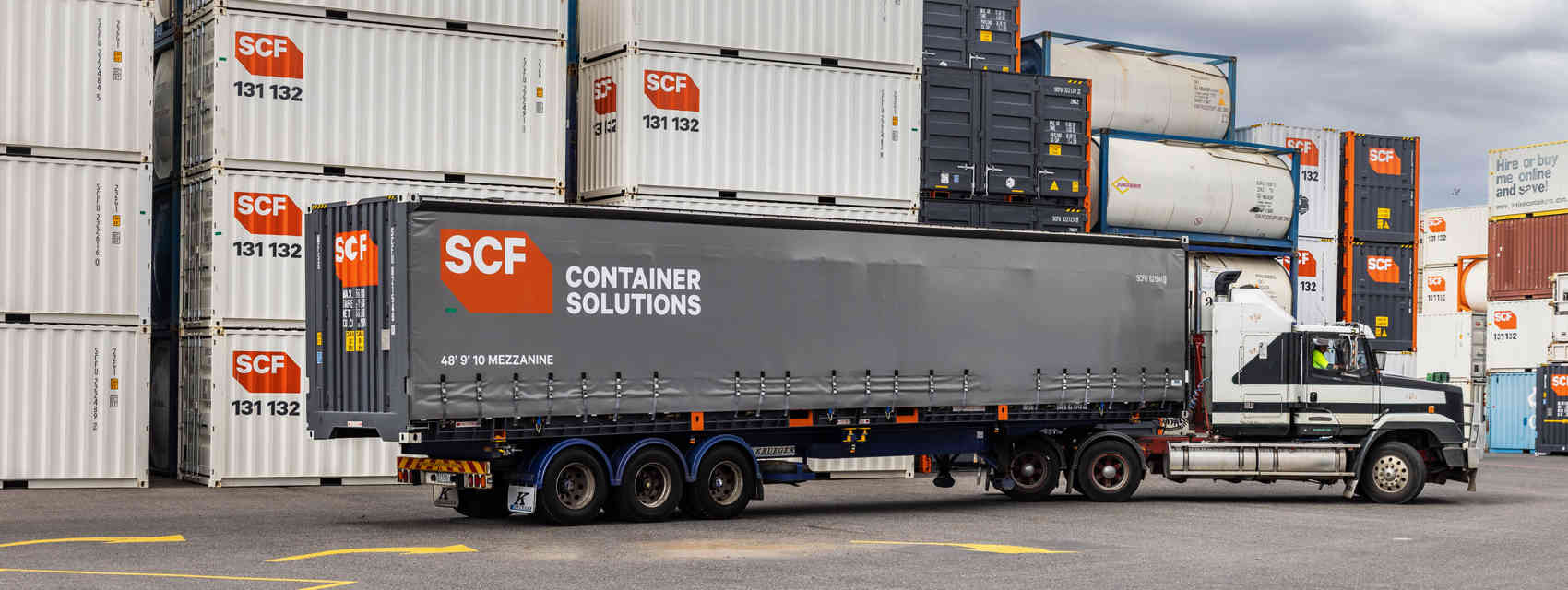

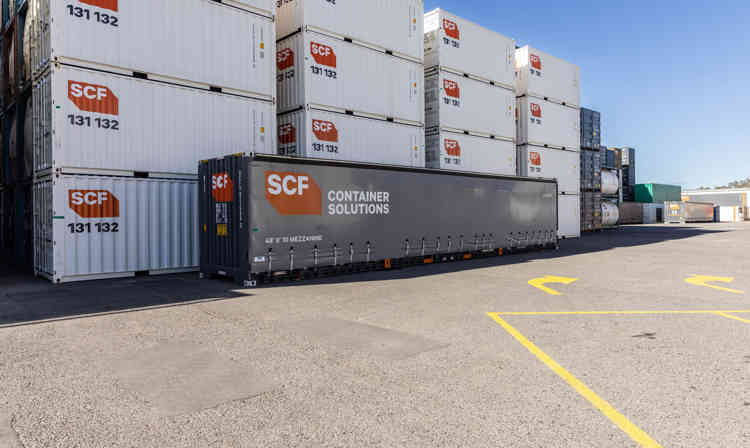

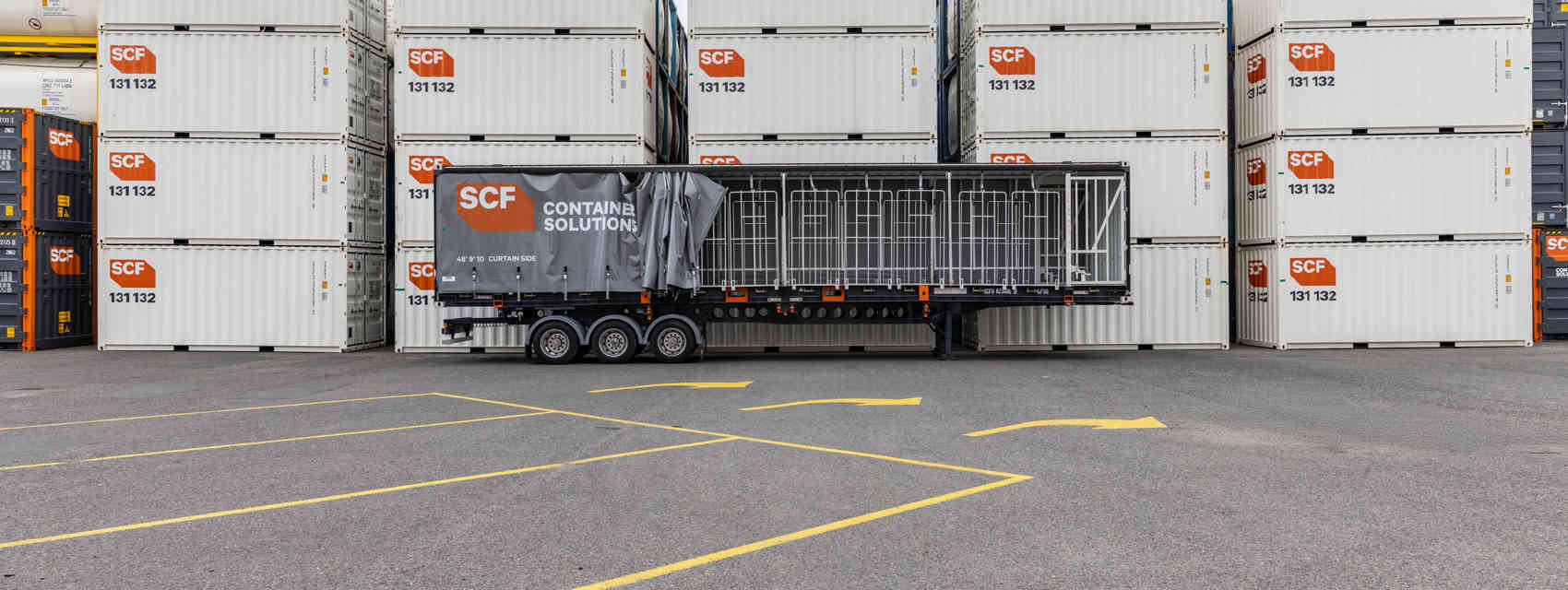

SCF 48Ft Curtain Side Angle (1) SCF 48Ft Curtain Side Truck SCF 48Ft Curtain Side Trailer

48ft Tautliner Container Dimensions and Weight

Specifications may vary

The cubic capacity of a 48ft Tautliner container is 91m3.

Internal (mm)
Length 14,526
Width 2,400
Height 2,623
External (mm)
Length 14,630
Width 2,500
Height 2,997
Weight (kg)
Tare 7,950
Payload 24,050
MGW 32,000

48ft Tautliner Container

48ft Tautliner Container - line drawing - SCF

Key Features

  • 2 pallet wide
  • Store up to 48 pallets with a Mezz Deck (optional)
  • Hanging posts and gates
  • Full lashing rail for restraint
  • Load binder winches
Get a Quote

FAQ

Without a Mezzanine Deck, you can fit 24 pallets. With a Mezzanine Deck, that doubles to 48 pallets.

A Tautliner container is similar to a Side Door container, however the curtain provides a significant weight reduction compared to the steel side doors. This doesn't impact the Tare weight of the unit, which can carry more freight with reduced fuel costs (thanks to the lighter weight).

A Mezzanine Deck is a reinforced platform inside the container that can be adjusted by a forklift to a desired height. It enables the double stacking of pallets in the container, ensuring pallets below the deck are not damaged.

No, not all units have the deck as standard.

If this is critical for your operations, be sure to inform our team when discussing your requirements.

Rather than source standard containers used by shipping lines, SCF designs containers in house specifically for transport customers. This means that all SCF intermodal containers are manufactured with features that are relied upon by logistics, 3PL and transports companies across the country.
