20ft Hoarding Platform 10kPa

Name: 20ft Hoarding Platform 10kPa
Brand: SCF
SKU: HP2
Rating: 4.9 (244 reviews)

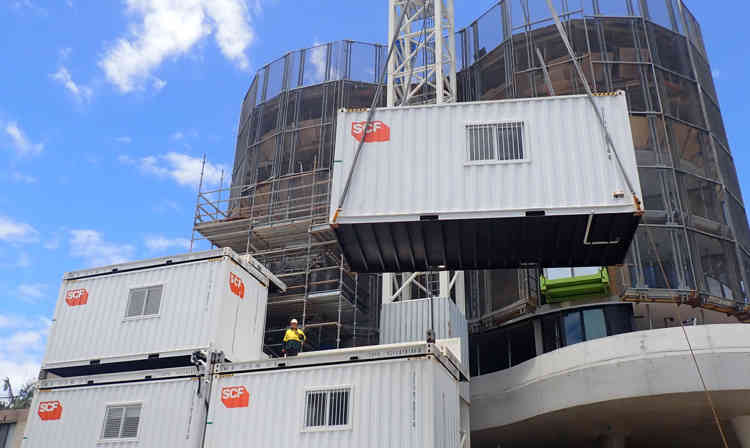

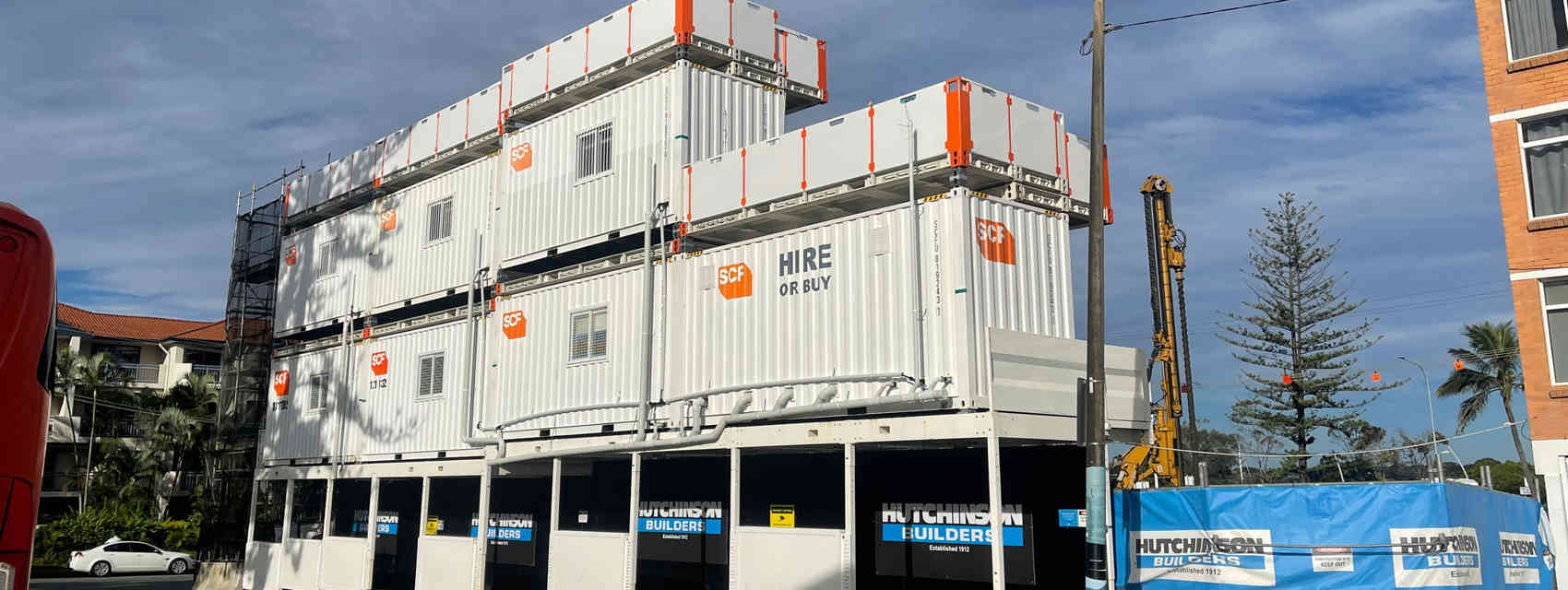

SCF 10kPa Hoarding Platform | With Container

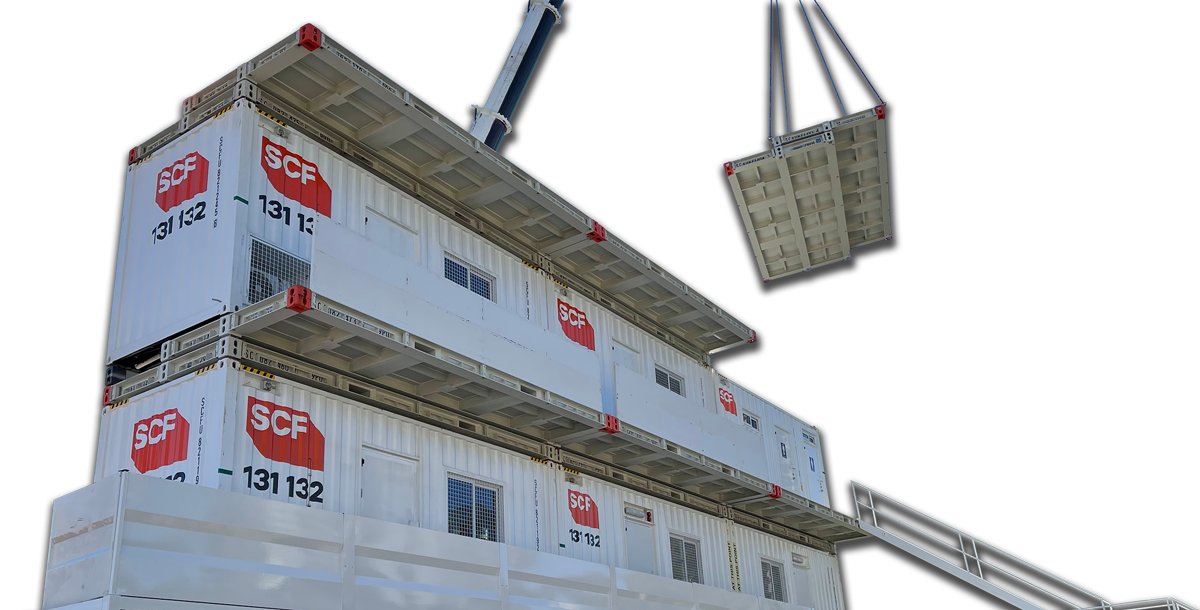

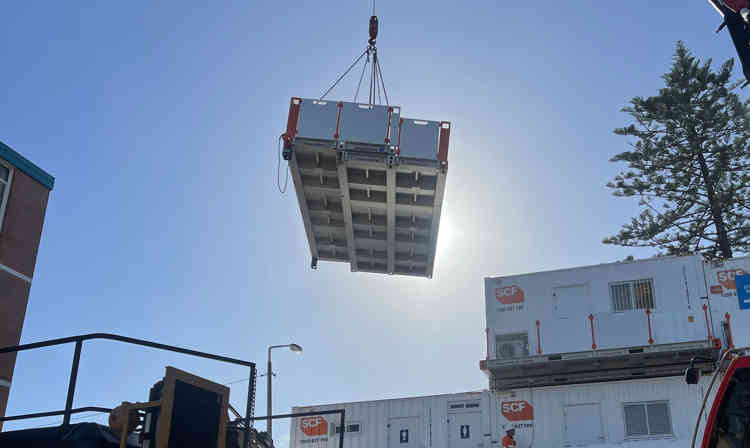

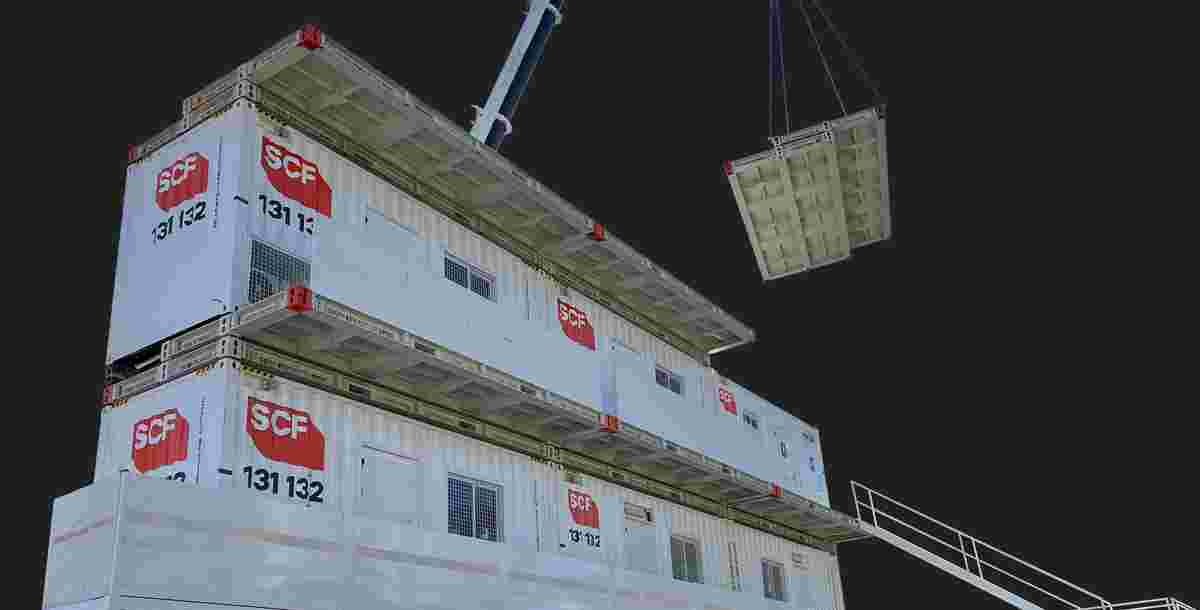

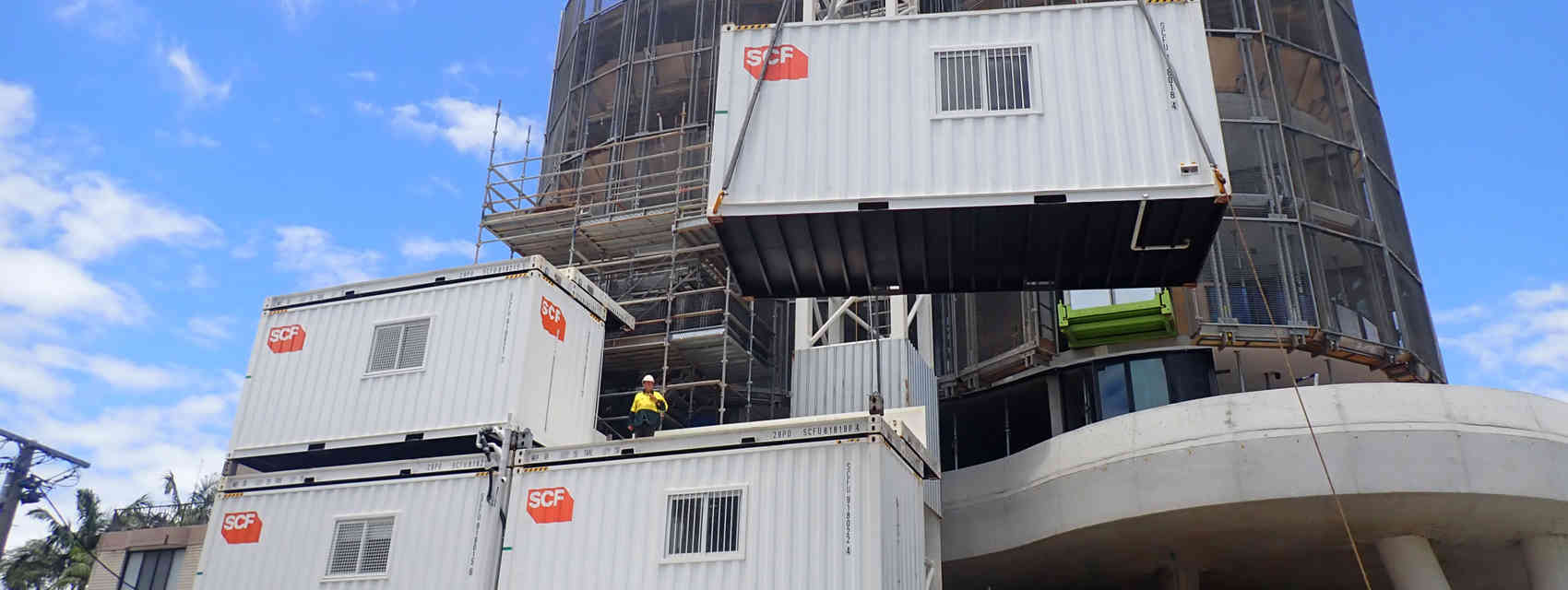

SCF 10kPa Hoarding Platform | Installation

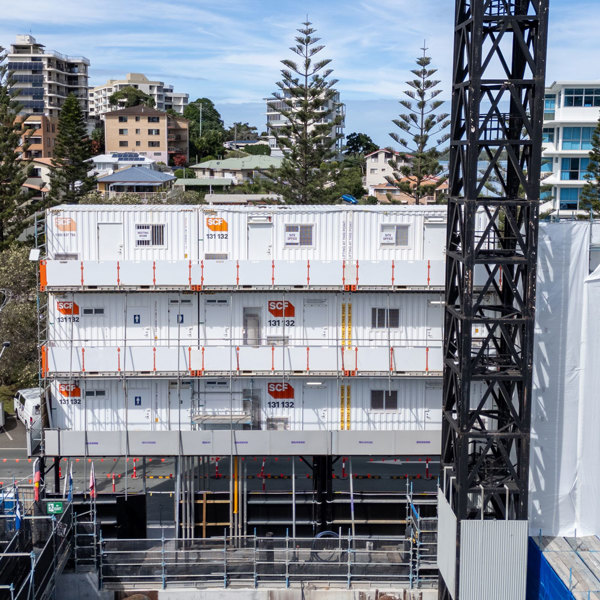

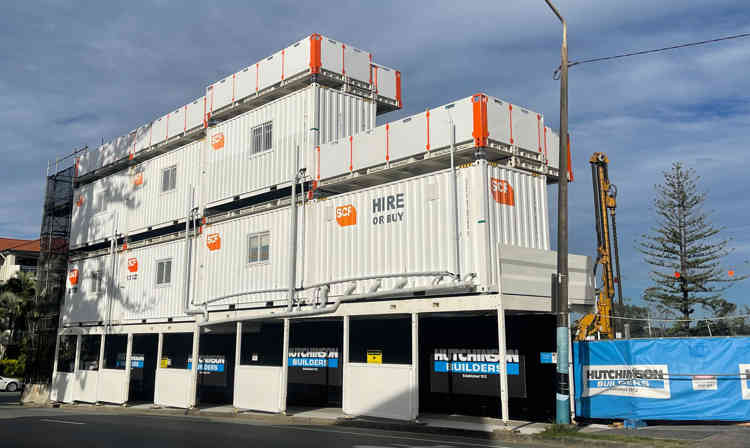

Scaffold affixed to SCF 10kPa platforms, which already provide overhead protection from debris and weather

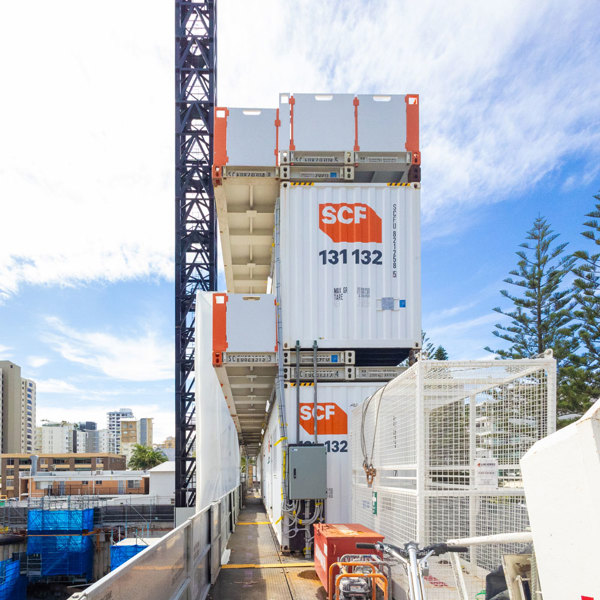

SCF 10kPa platforms used for crane storage on a space constrained site

SCF handrails are gapless and modular in design, so install or site adjustment is easy and safe.

SCF's gapless handrails means nothing can slip through the cracks and cause danger to people below

20ft Hoarding Platform 10kPa

SCF's 10kPa Hoarding Platform provides overhead protection that complies with Australian standards. Protect your staff on site with easy installation.

Key Features

Cantilevered walkways
Built in facilities for certified hand rails
AS 4586-2013, Class P5 slip rating when used as cantilevered walkways
Complies with Australian Standards AS4100, AS1170.1 & AS1170.2
Code of practice 1995-overhead protective structure
Wind rain guard option designed to help reduce water & wind ingress
Provides overhead crane storage for space constrained sites
SCF Proprietary Handrails optional - gapless, modular, lightweight

Download brochure Get a Quote

Product Details

SCF's 10kPa hoarding platform provides overhead protection for staff in site sheds, portable buildings and on walkways.

The platform complies with Australian Standards AS4100 steel structures, AS1170.1 structural design actions, AS1170.2 wind actions and the Code of practice 1995-overhead protective structure.

When your site is space constrained, these platforms enable multi-stacking options without compromising on safety. They can also provide protection from the weather, both the scorching sun and steady rain.

Integrated certified anchor points assist with safe installation or dismantle when working at heights.

A range of options make it a flexible option for your worksite. Consider them a key element to any construction project that you're managing.

Options

Wind rain guard to help reduce water and wind ingress
SCF Proprietary Handrails
- SCF gapless handrails are AS1657 compliant
- Modular setup that is easy to install and adjust throughout project
- Lower weight than traditional handrails

20ft Hoarding Platform 10kPa Dimensions and Weight

Internal

Length (mm) N/A

Width (mm) N/A

Height (mm) N/A

External

Length (mm) 6,058

Width (mm) 2,438

Height (mm) 260

Weight

Tare (kg) 2,000

Payload (kg) 20,000

MGW (kg)

20ft Hoarding Platform 10kPa - line drawing - SCF

How is this container delivered?

Tilt Tray

Tilt tray delivers a container off the back of the truck. Similar to a tow truck, the tray is mechanically lowered at an angle, and the container is slid off, with the truck moving forward at slow speed. This is the most common delivery method used for containers. Tilt trays are not suitable for sites with overhead power lines as the container height increases significantly when tilted.

Hiab Crane

Hiab cranes lift containers from a mechanism located behind the truck's cabin. This is used when there is limited space for a side loader or tilt tray. Using a crane means the container is easily positioned at an angle or up on a raised area. It can also be used to place containers over a fence or other obstacles.

Side Loader

Side loaders are used to transport our 20 foot and 40 foot shipping containers. This is the best delivery method for containers at sites that have limited space either in front or behind the area where the container is to be positioned. The container is unloaded between the two outrigger feet of the side loader, approximately half a metre from the side of the truck.
