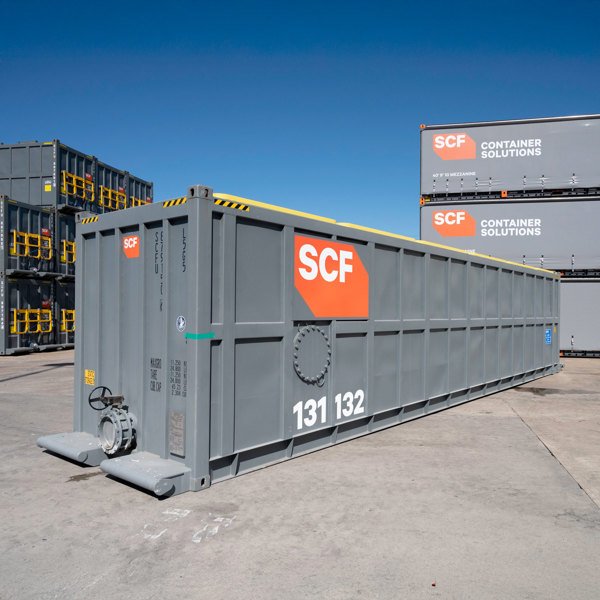

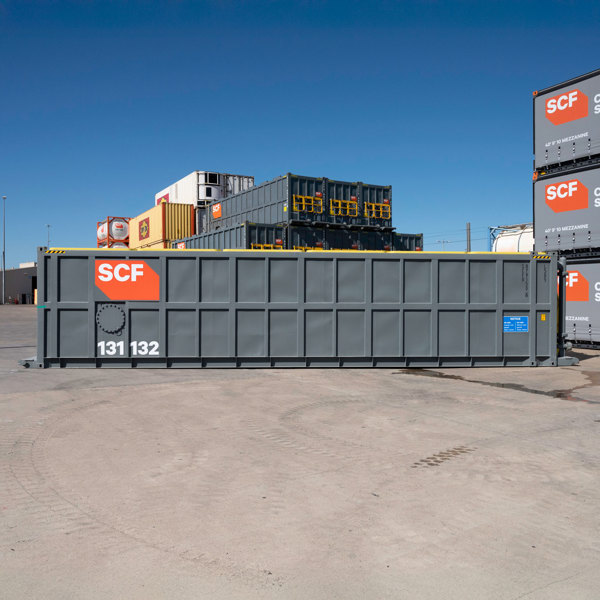

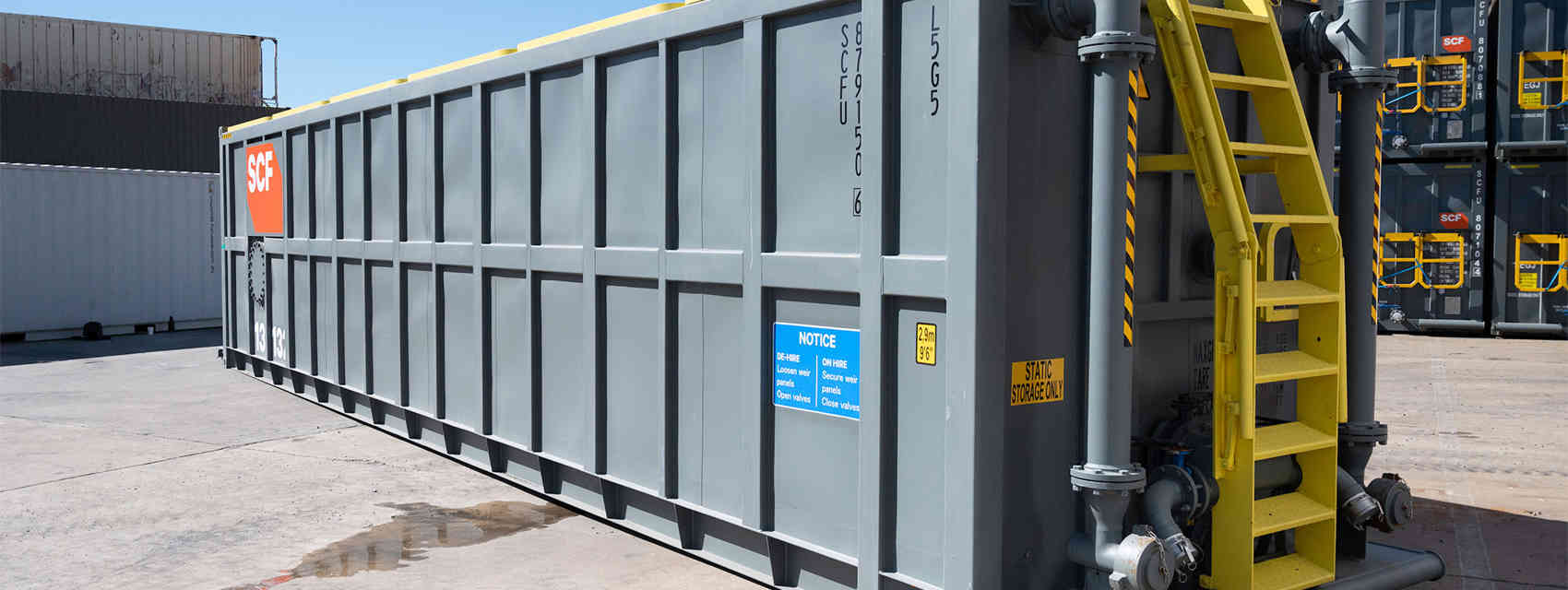

45ft Flowback Tank

The SCF 45ft Flowback tank is designed for large scale liquid sediment removal and water treatment. This unit is compliant for both road and rail transport allowing for rapid deployment in almost any location.

Key Features

  • AS1657 compliant stair and hand rail system
  • 484BBL capacity (77,000L)
  • Access to the top of the tank
  • Built-in triple weir system to assist in sediment separation

Flowback Tank Details

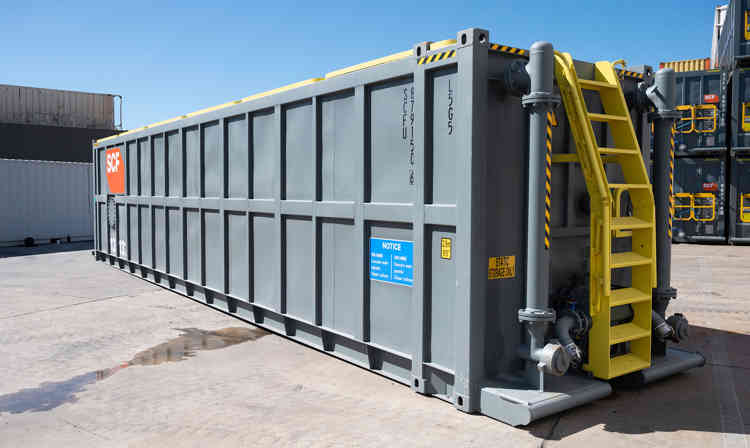

Built as an open top tank with a fold down gantry system, operators can safely access the top of the tank and the central weir to treat water.

Designed for the purpose of removing suspended solids from water with SCF's sediment removal system, the weirs encourage solids to drop from suspension and settle in the bottom of the tank.

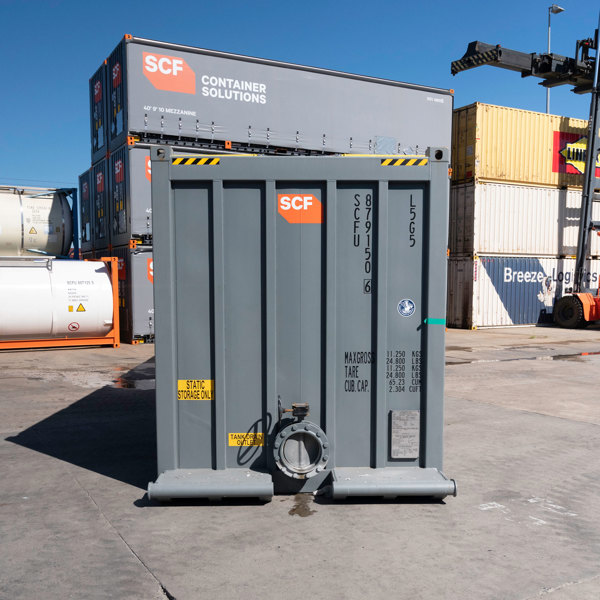

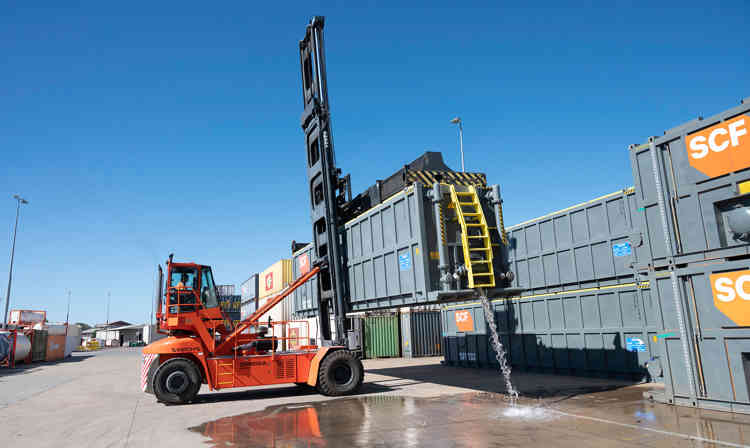

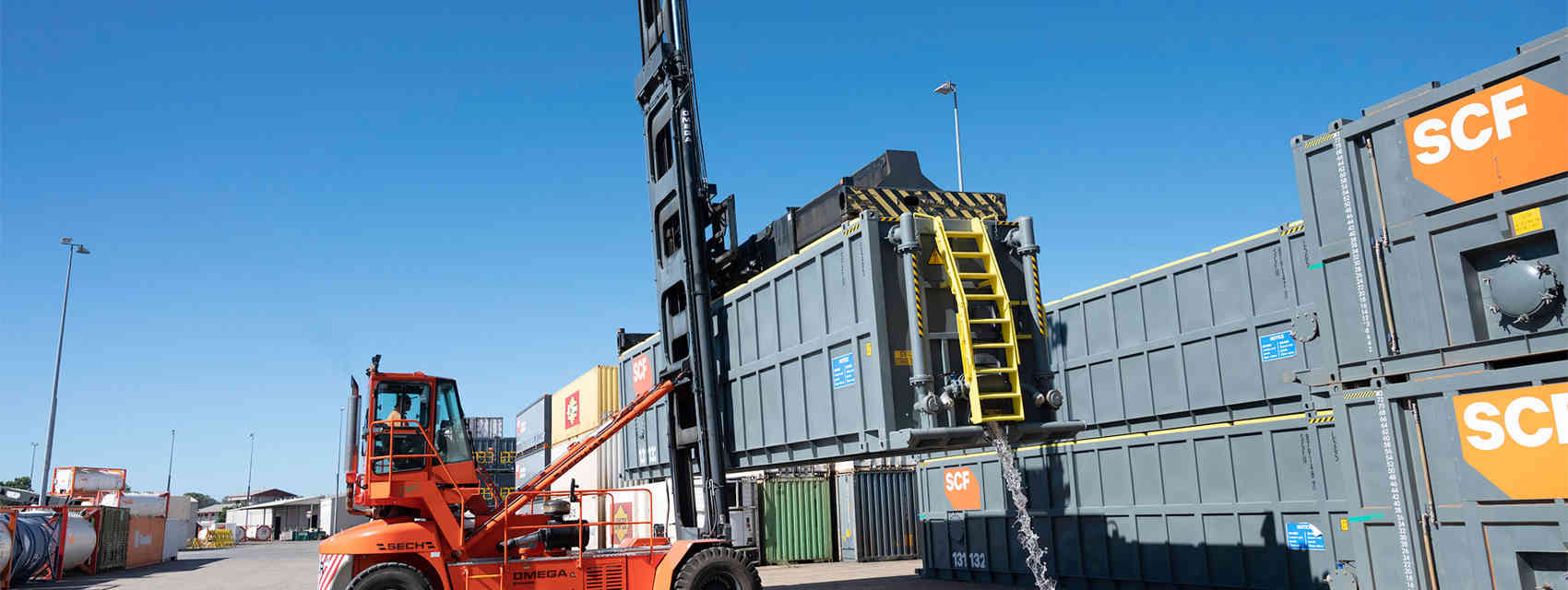

The oversize end valve and removable weirs allow the solids to be easily washed out of the tank at the end of each project.

Similar to our 48ft Wheeled Bulk Storage Tank, our Flowback can hold up to 77,000 L as a single large storage receptacle, or can be connected in sequence together to allow for further separation.

Flowback Options

  • Customer co-branding

  • Removable hatches

45ft Flowback Tank Dimensions, Volume and Weight

Specifications may vary. The below external dimensions assume the gantry is not in the raised position.

Volume
Litres 75,000
75

External
Length (mm) 13,716
Width (mm) 2,438
Height (mm) 2,896
Weight
Tare (kg) 8,775
Payload (kg) 76,000
MGW (kg) 84,775

Flowback External Dimensions

External dimensions of a Flowbank Tank.

How is this container delivered?

SCF Shipping Containers - Delivery Method - Tilt Tray

Tilt Tray

Tilt tray delivers a container off the back of the truck. Similar to a tow truck, the tray is mechanically lowered at an angle, and the container is slid off, with the truck moving forward at slow speed. This is the most common delivery method used for containers. Tilt trays are not suitable for sites with overhead power lines as the container height increases significantly when tilted.

SCF Shipping Containers - Delivery Method - Hiab Crane

Hiab Crane

Hiab cranes lift containers from a mechanism located behind the truck's cabin. This is used when there is limited space for a side loader or tilt tray. Using a crane means the container is easily positioned at an angle or up on a raised area. It can also be used to place containers over a fence or other obstacles.
