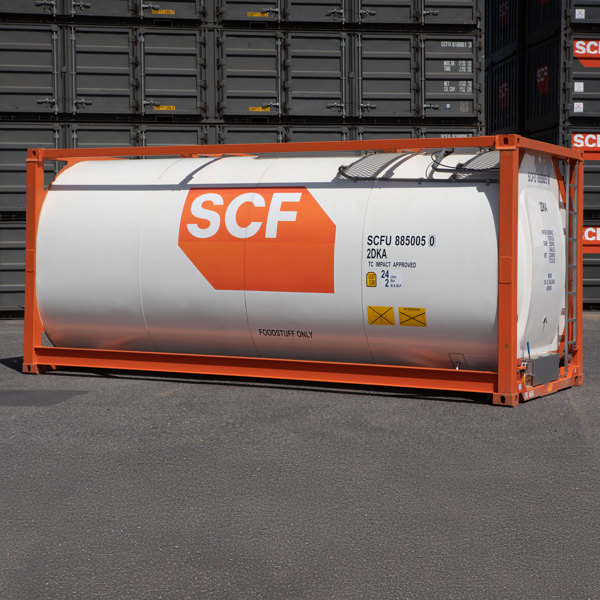

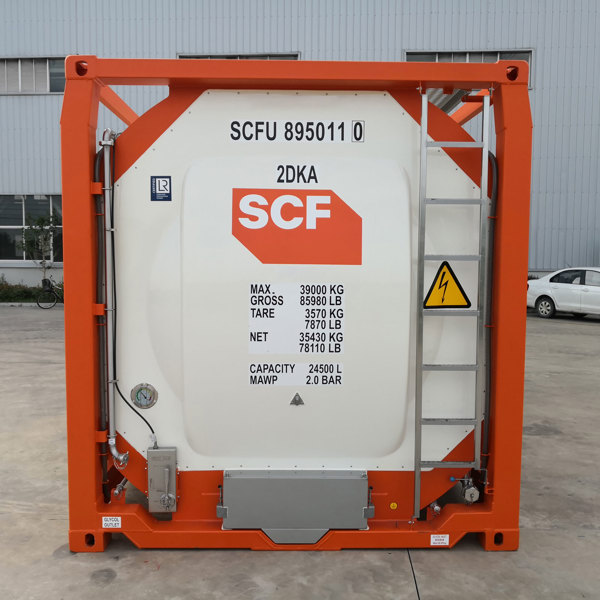

ISO Food Grade CIP Tank ISO Food Grade CIP Tank

ISO Food Grade CIP Tank

ISO Food Grade CIP Tank

SCF has extensive ISO tank expertise which has underpinned the development of its Food Grade Cleaning in Place (CIP) tank container. Suited to transporting temperature sensitive cargo, such as milk. Superior thermal insulation maintains temperature for longer, so your cargo can be delivered within specification.

Key Features

  • Superior insulation system for temperature sensitive cargos
  • Internal Cleaning in Place (CIP)
  • Food grade hygienic valves and gaskets throughout
  • Thermowell for the fitment of remote temp monitoring systems
  • 21,000 - 24,500L capacities available
  • Sample ports in tap or syringe configuration dependent on your sanitary requirements

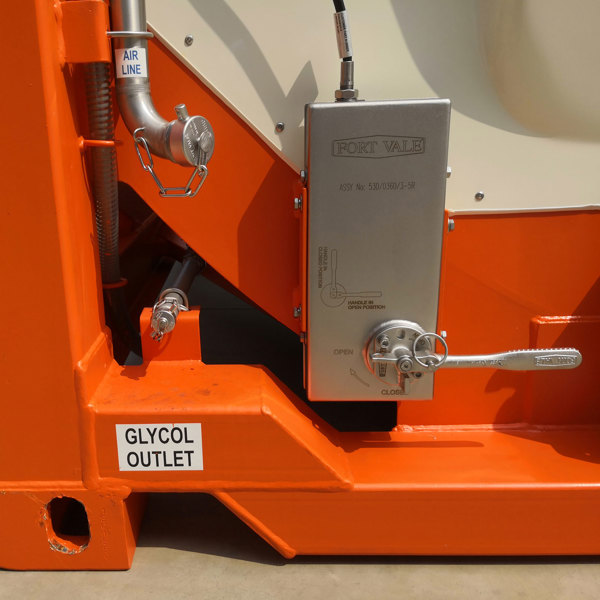

  • Fully sealed, lockable discharge cabinet for sanitary applications

Product Details

SCF's Food Grade ISO Tank can be supplied with baffles so cargos of different specific gravity can be loaded in a two-way supply chain.

A Worksafe design registered version is available for the transport of pressurised cargos such as carbonated beverages.

All units are fitted with sample ports to enable cargo sampling prior to discharge.

Units can be fitted with remote temperature tracking system to enable 24 hour back to base monitoring.

Both refrigerated and heated variants available in either Diesel or Electric formats.

Integrated rotating CIP spinner heads to provide both mechanical and chemical clean guaranteeing the highest levels of product quality control.

View the rest of our iso tank range to find out how SCF can support your industry needs.

Options

  • Onboard heating and cooling systems (3 phase electric or diesel generated)

  • Temperature tracking and data monitoring with back to base temperature reporting

  • 4” discharge for viscous cargos

  • SCF Patented Breath Easy air relief indicator

  • Integrated Footvalve and airline

ISO Food Grade Container Dimensions and Specs

SCF has a range of tank capacities. Contact us to discuss the right container size for your needs. Specifications may vary.

Volume
Litres 21,000 - 24,500
21-24.5

External
Length (mm) 6,058
Width (mm) 2,438
Height (mm) 2,591
Weight
Tare (kg) 3,460
Payload (kg) 35,540
MGW (kg) 39,000

ISO Food Grade CIP Tank External Dimensions

External dimensions of an ISO food grade CIP tank.

How Does Our Milk Tank Perform?

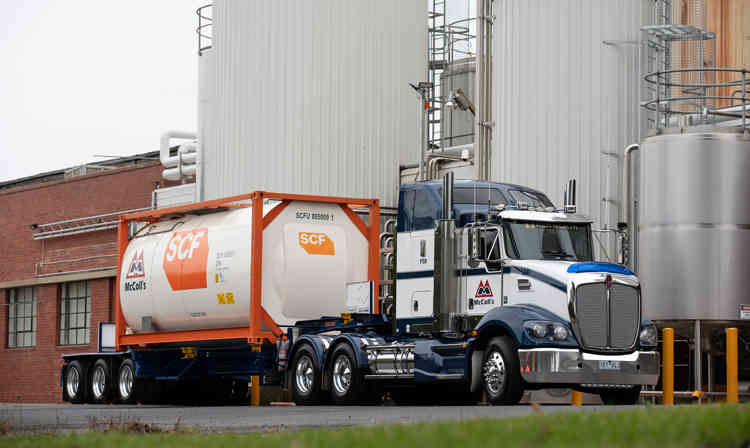

See how McColl's is using our Food Grade CIP tank to transport milk across the country.
