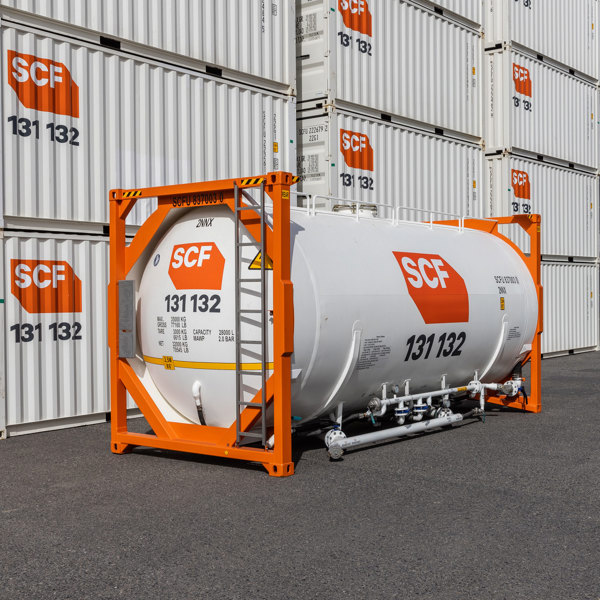

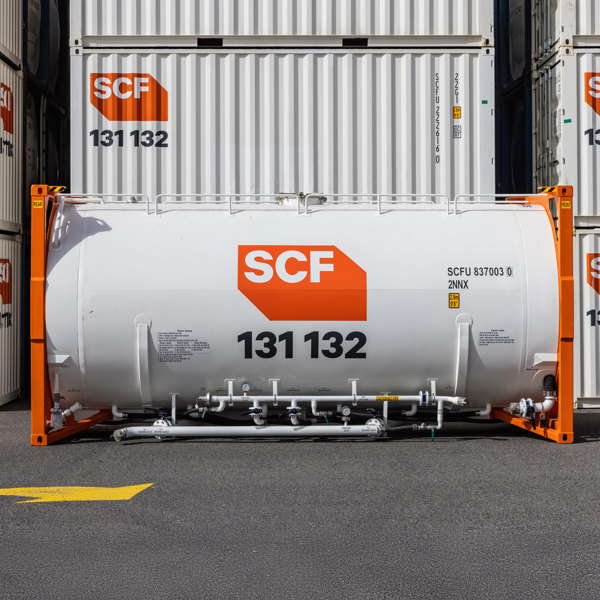

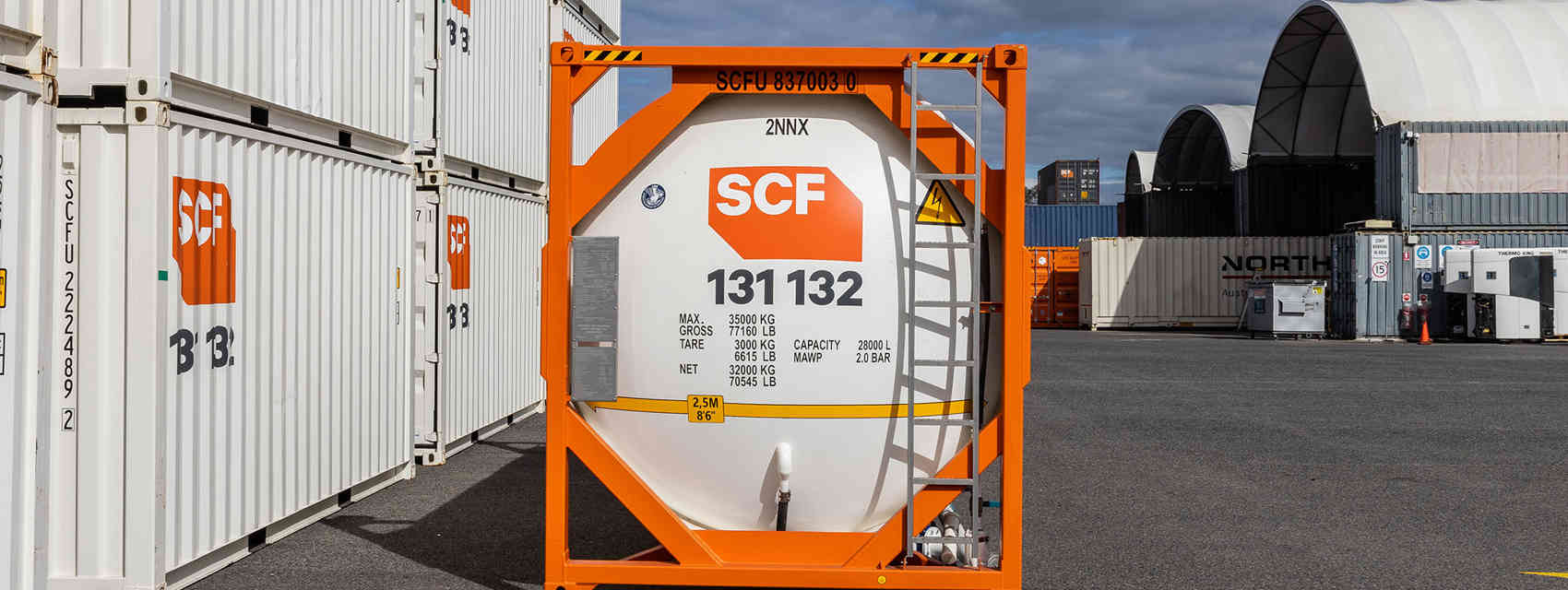

ISO Pneumatic Tank

Name: ISO Pneumatic Tank
Brand: SCF
SKU: TKP28M3-GEN4
Rating: 4.9 (137 reviews)

ISO Pneumatic Tank

The SCF ISO Pneumatic Tanks provide industry leading discharge times with minimal operator interaction. This high performing discharge system is the basis for all SCF ISO powder tanks.

Key Features

1 tonne per minute discharge rate
Dual safety pressure relief valves
Internal pressure equalisation
Fully ground operated

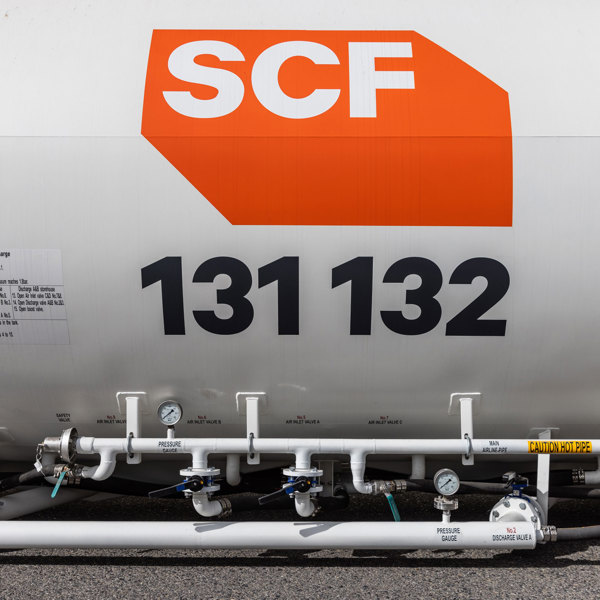

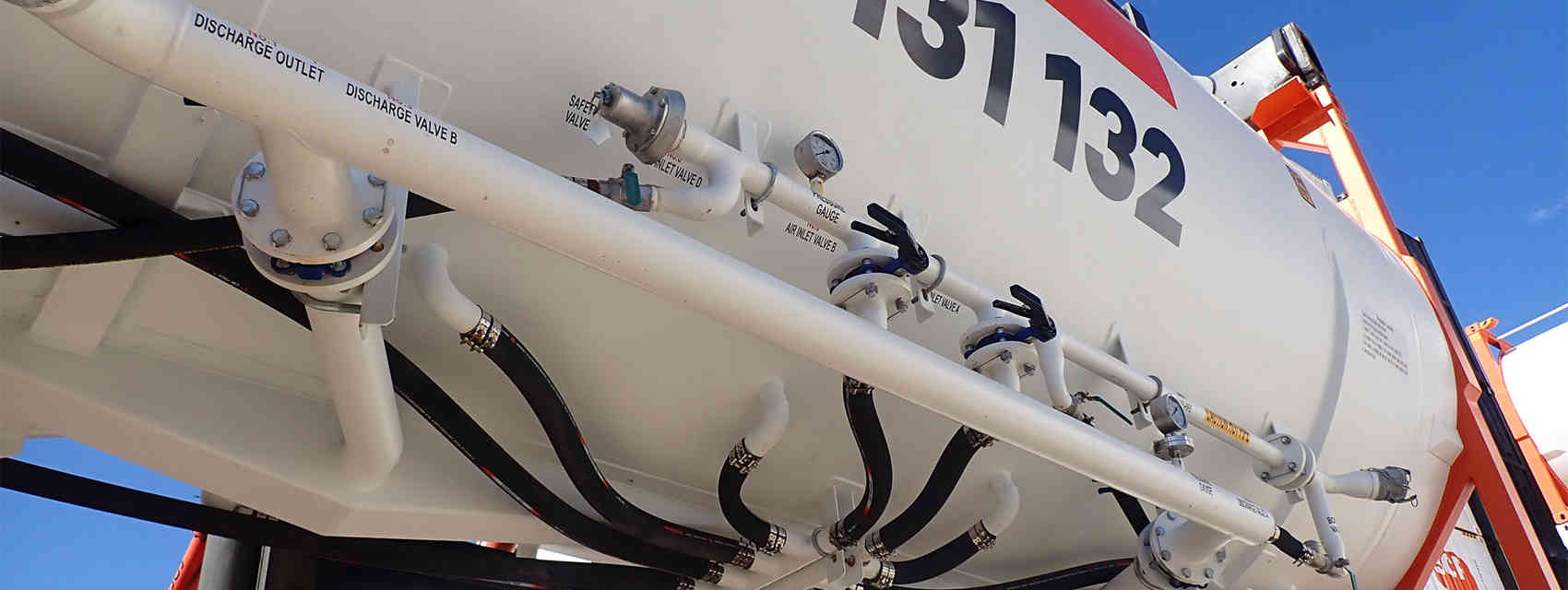

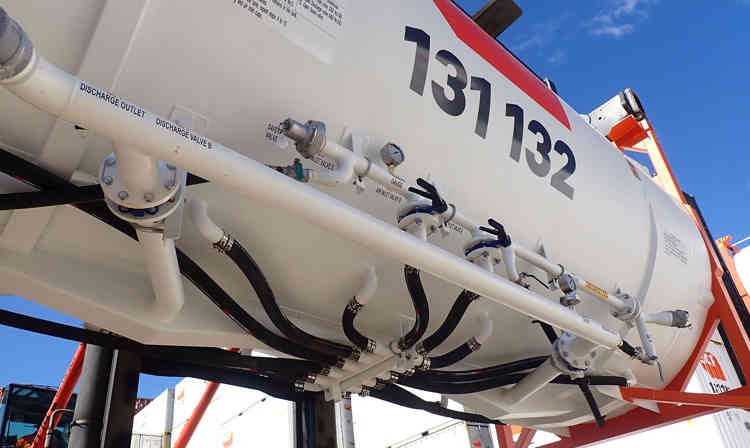

Impact protection system over airlines to reduce potential fork damage
3 top loading hatches

Download brochure Get a Quote

Product Details

SCF's ISO Pneumatic Tanks are designed by our Australian engineers and are fully compliant with AS1210, AS3788, ISO, TIR and TCT. Our tanks are ideal intermodal or onsite solutions for cement powder, lime, bentonite and fly-ash and feature an internal pressurisation and pneumatic load system for cost saving efficiency.

Compliant with Work Safe and OHS requirements, SCF's ISO Pneumatic tanks can also be supplied as low height variants for supply chains with low height rail bridges. An option with tyne fork pockets that are rated for full loads where top lift forklifts are not readily available, such as mine sites, is also available.

Soon to be launched is a new range of cement tanks with a patented discharge system that embody all the traditional functionality of the existing SCF pneumatic system whilst delivering higher payloads and lower tare weights.

View the rest of our iso tank range to find out how SCF can support your industry needs.

Benefits of Pneumatic Tanks

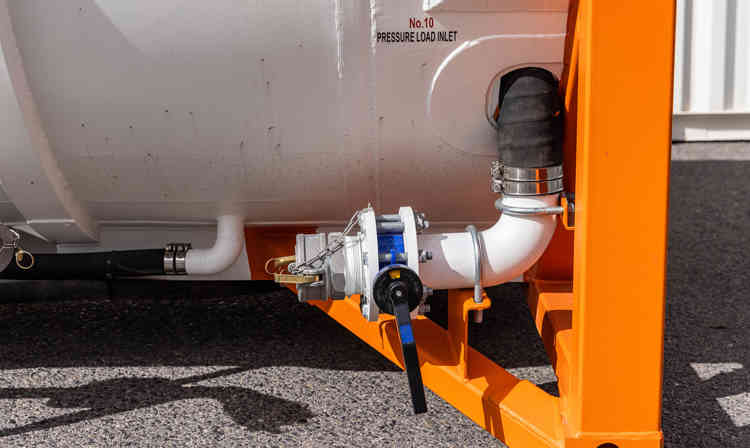

Increased OHS compliance due to being ground operated, with ability to be loaded from a tanker truck with a ground pressure load feature
Internal pressure balancing system to reduce long-term maintenance costs through stress cracking

Pneumatic Tank Options

Rated tyne pockets for lifting of loaded tank
Custom branding available
Flexible lease solutions

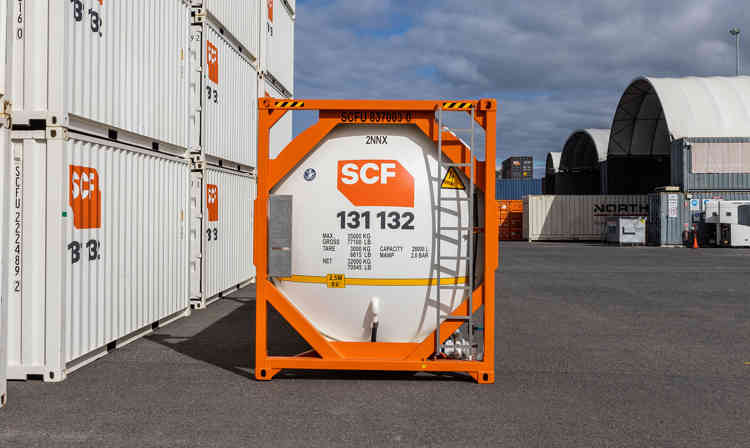

ISO Pneumatic Tank Dimensions and Weight

28,000L ISO Tank

Specifications may vary. Contact SCF for container dimensions of other ISO Pneumatic sizes.

Volume

Litres 28,000

m³ 28

External

Length (mm) 6,058

Width (mm) 2,502

Height (mm) 2,896

Weight

Tare (kg) 4,150

Payload (kg) 29,850

MGW (kg) 34,000

How is this container delivered?

Side Loader

Side loaders are used to transport our 20 foot and 40 foot shipping containers. This is the best delivery method for containers at sites that have limited space either in front or behind the area where the container is to be positioned. The container is unloaded between the two outrigger feet of the side loader, approximately half a metre from the side of the truck.

Hiab Crane

Hiab cranes lift containers from a mechanism located behind the truck's cabin. This is used when there is limited space for a side loader or tilt tray. Using a crane means the container is easily positioned at an angle or up on a raised area. It can also be used to place containers over a fence or other obstacles.

ISO Pneumatic Tank

SCF's ISO Pneumatic Tank is designed with advanced technology to improve performance and safety.
