40ft Pallet Wide

40ft Pallet Wide

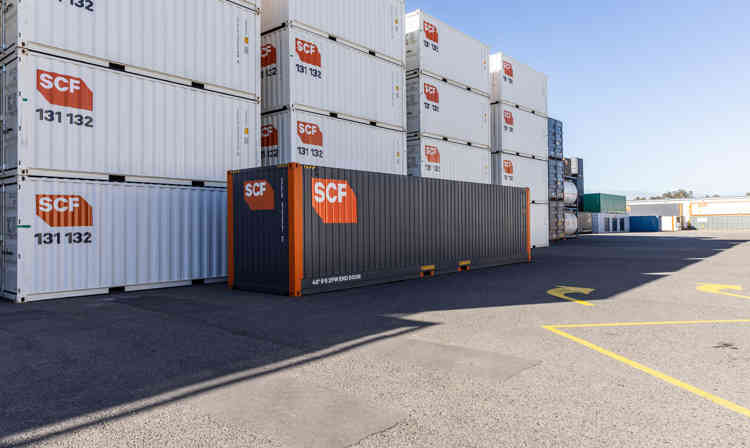

SCF’s 40ft Pallet Wide container is wide enough to fit two chep pallets side by side to maximise equipment utilisation. Easily fit up to 20 pallets for safe and secure transport. Or 40 pallets by adding our vertical load bars.

Key Features

Tie rails to secure cargo
Lashing rings to secure cargo
SCF custom base arrangement with reinforced floors

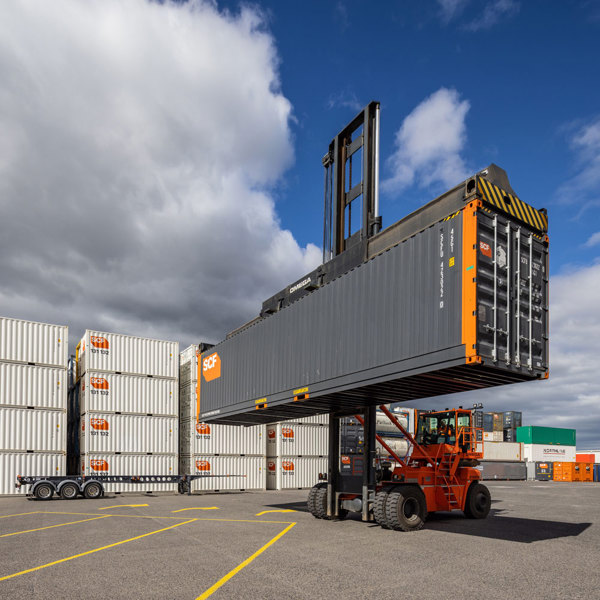

40’ Handling points
Reinforced handling points to reduce damage
F-track for freight restraint

Download brochure Get a Quote

Product Details

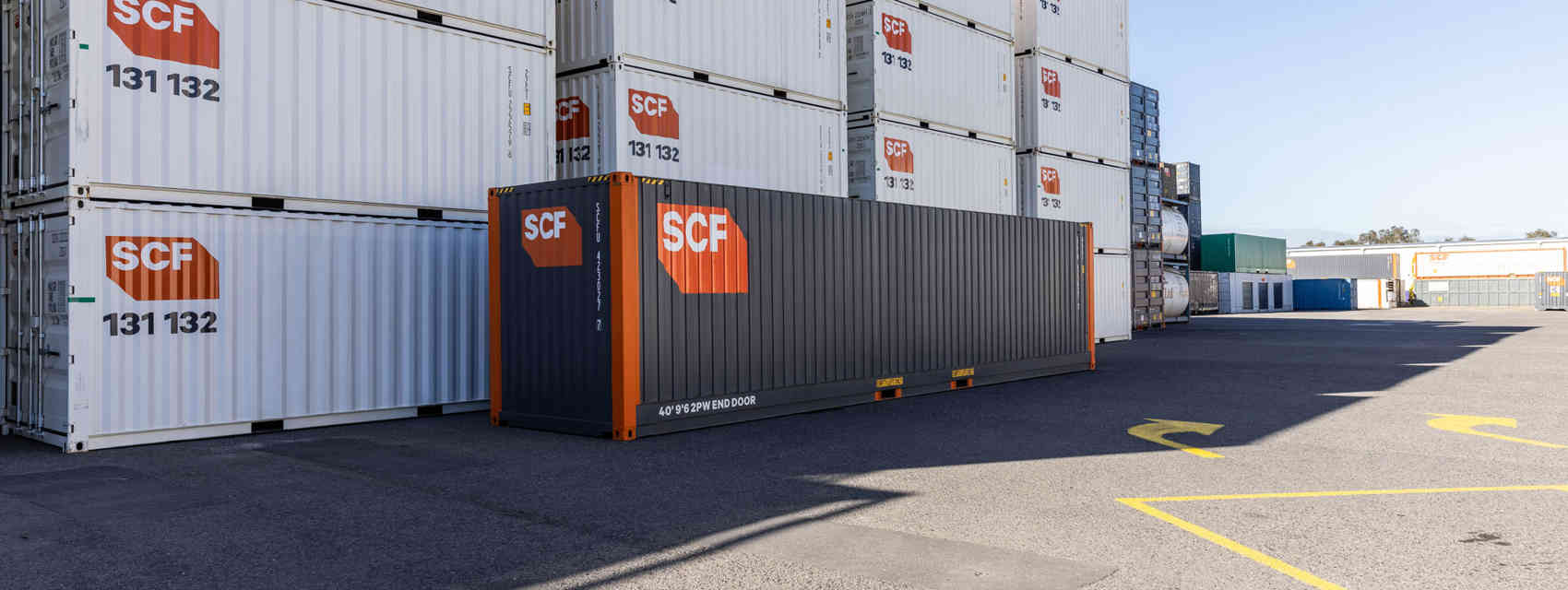

Maximise space and minimise freight costs by using a SCF 40ft pallet wide container. Suitable for palletised freight, heavy dense cargo or irregular freight. This container can carry up to 40 pallets with the capacity to load pallets 2 wide and 2 high with the use of the vertical load bar option.

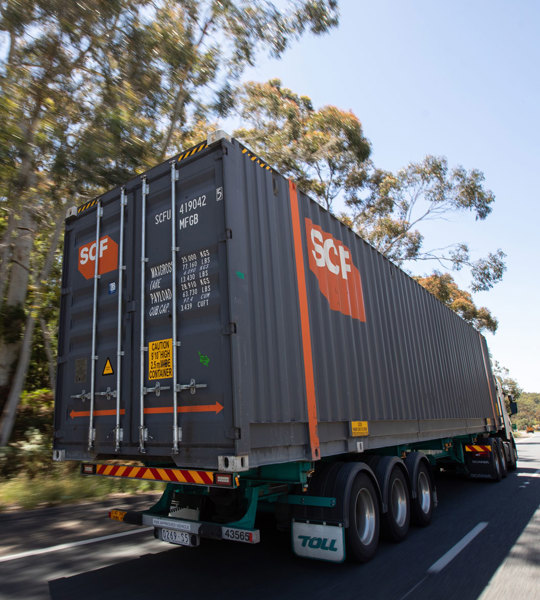

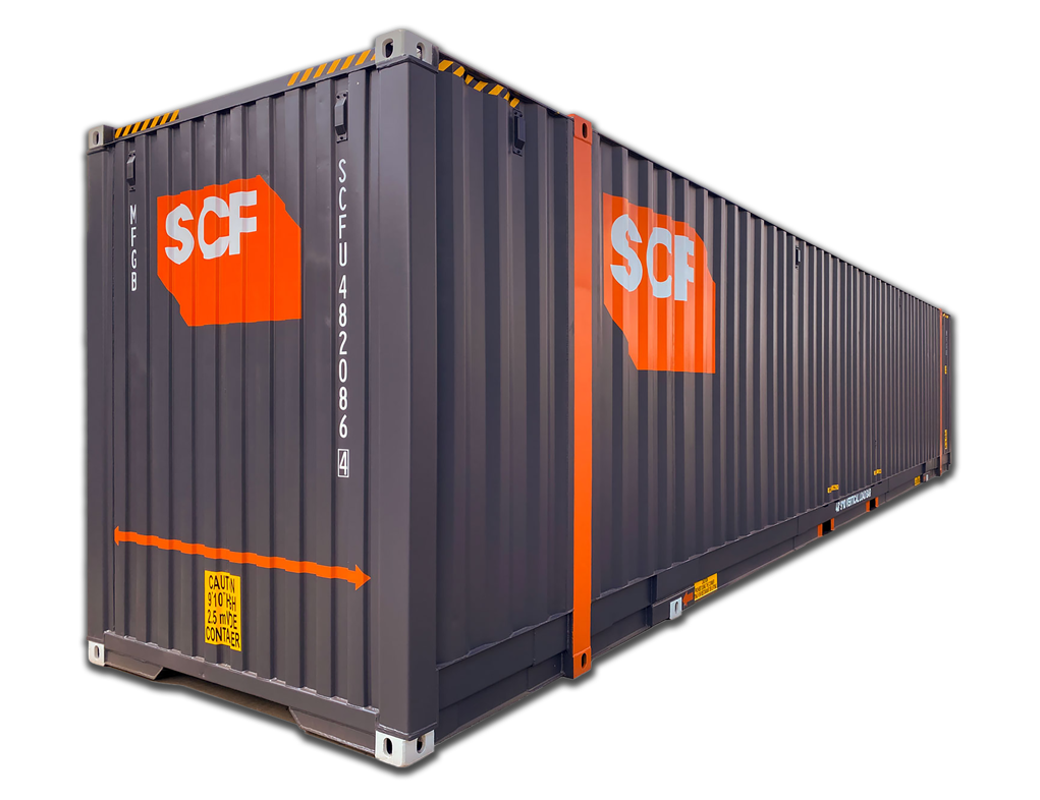

40 pallets not enough? Consider a 48ft Container in 24 pallet or 48 pallet (with vertical load bar option) configurations.

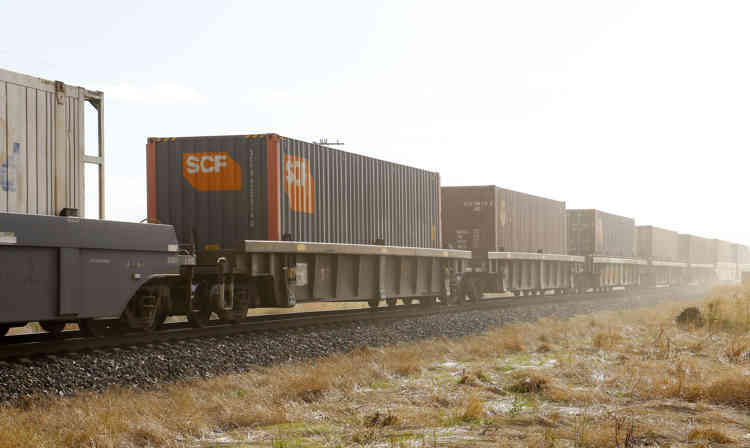

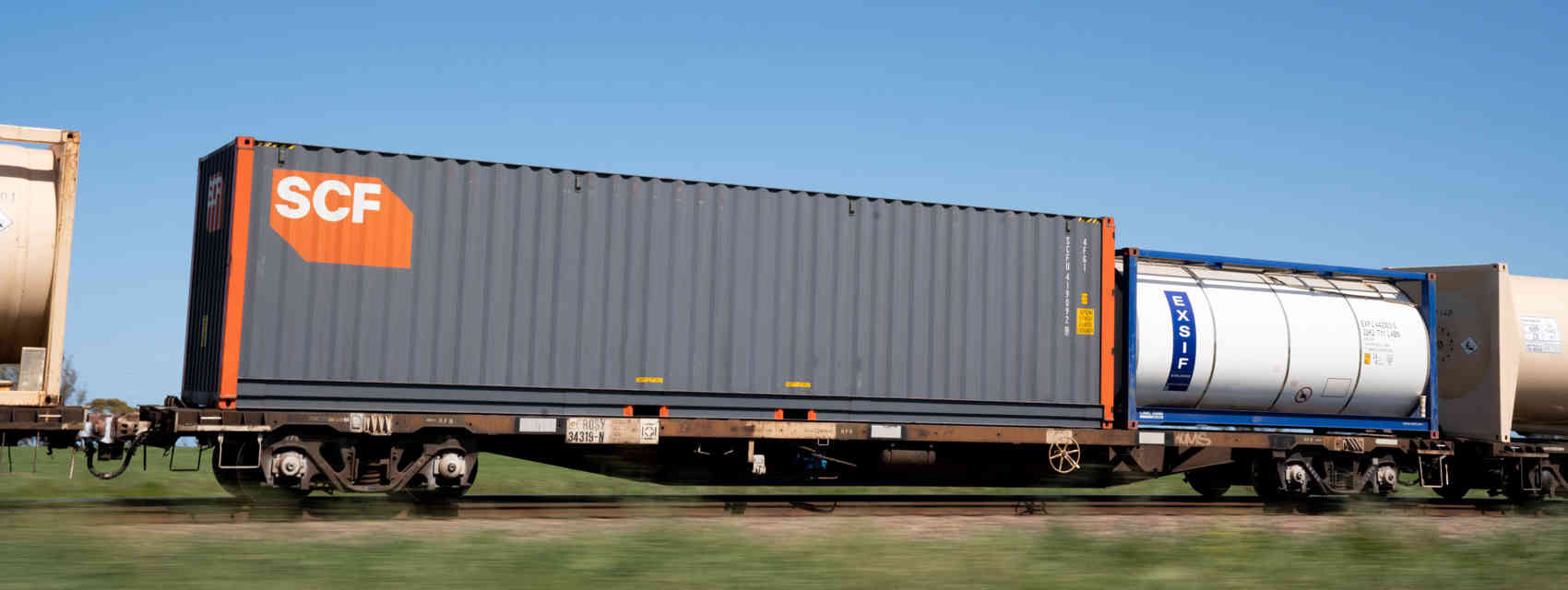

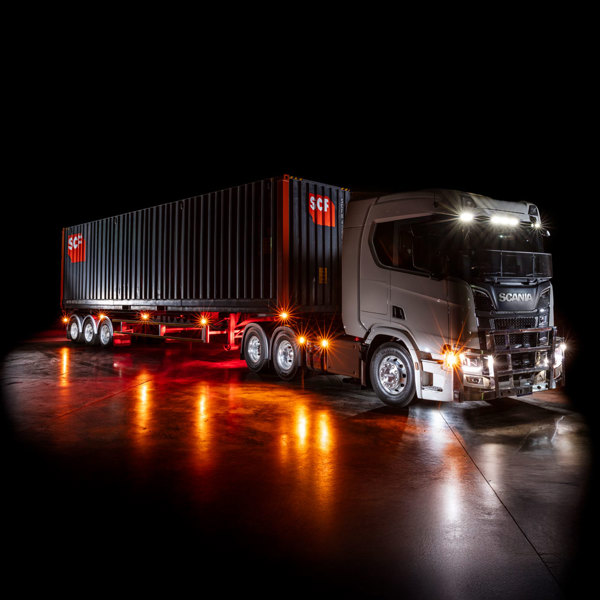

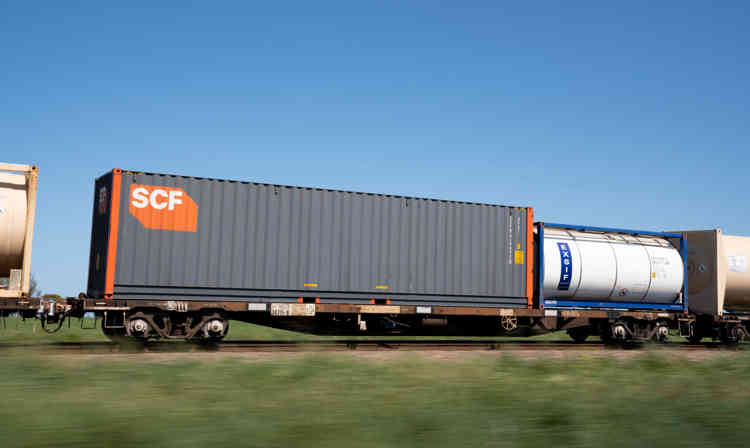

Suitable for transport on road or rail, SCF’s pallet wide containers have been built strong to protect cargo in transit whilst minimising damage.

With our +25 years in intermodal experience, SCF has a range of sizes and variants to provide alternative capacity options to suit your requirements.

Options

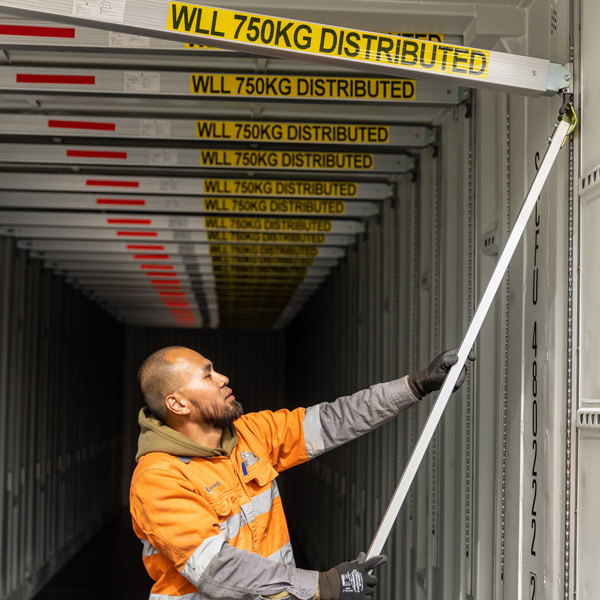

Vertical Load Bars
Lightweight Model
Branding

40ft Pallet Wide Dimensions and Weight

Specifications may vary

The cubic capacity of a 40ft pallet wide container is 78m³.

Internal

Length (mm) 12,041

Width (mm) 2,414

Height (mm) 2,695

External

Length (mm) 12,192

Width (mm) 2,462

Height (mm) 2,896

Weight

Tare (kg) 4,670

Payload (kg) 29,330

MGW (kg) 34,000

How is this container delivered?

Side Loader

Side loaders are used to transport our 20 foot and 40 foot shipping containers. This is the best delivery method for containers at sites that have limited space either in front or behind the area where the container is to be positioned. The container is unloaded between the two outrigger feet of the side loader, approximately half a metre from the side of the truck.

Hiab Crane

Hiab cranes lift containers from a mechanism located behind the truck's cabin. This is used when there is limited space for a side loader or tilt tray. Using a crane means the container is easily positioned at an angle or up on a raised area. It can also be used to place containers over a fence or other obstacles.
